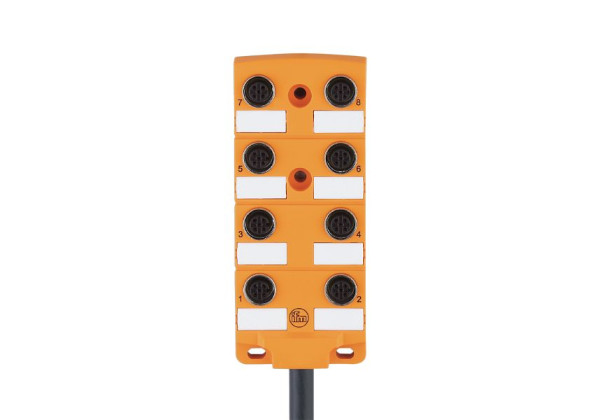

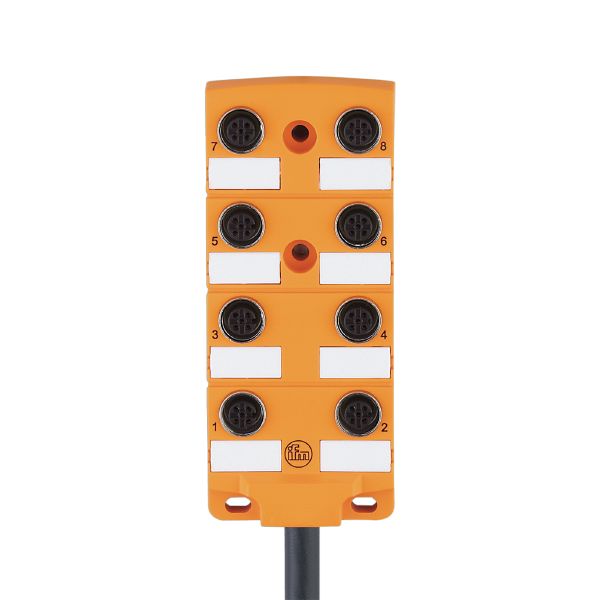

EBT004 - ecomat400-ZDO8H050VAS0015E19
Brand: IFM Electronic
Code: EBT004
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Permanent, reliable sealing even when mounted without tools
- Robust housing for use in harsh industrial environments
- High protection rating for the requirements of the food and beverage industry
- Mechanical end stop to protect the O-ring from destruction
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Protection class | II |
| Max. current load per module/slot [A] | 4 |
| Max. current load total [A] | 12 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Ambient temperature (moving) [°C] | -5...60 |
| Protection | IP 67; IP 68 |
Tests / approvals
| UL approval |
|
|---|
Mechanical data
| Weight [g] | 2875 |
|---|---|
| Dimensions [mm] | 22 x 54 x 127 |
| Materials | housing: PA |
| Number of ports splitter box | 8 |
| Connector type | M12 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 15 m, PVC, black, Ø 9.7 mm; 16 x 0.34 mm² + 3 x 1.0 mm² |
Electrical connection - slot
| Connection | Connector: 8 x M12; coding: A; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBT004-01 — 05.11.2020 —
