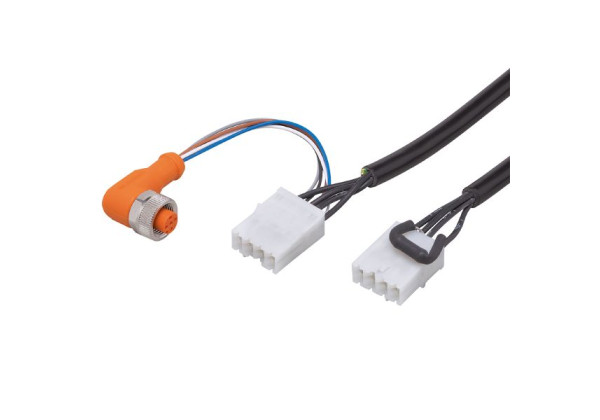

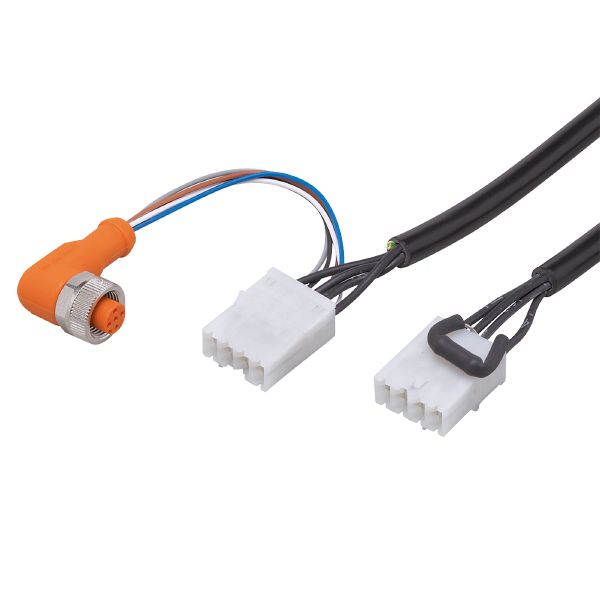

EC0453 Prewired jumper with contact housing BasicCable/DisplayModules A
Brand: IFM Electronic
Code: EC0453
- For the connection of controllers and dialogue units
- Reliable signal transmission for CAN devices
- With integrated CAN bus terminating resistors in contact housing and connector
- Large operating temperature range for use in mobile machines
- Wired for voltage supply and signal transmission
Application
| Design | wired, for BasicController and BasicDisplay, 2 x CR04xx, 1 x CR045x |
|---|---|
| Application | power supply; CAN bus |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|
Mechanical data
| Weight [g] | 62.2 |
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 0.5 m, PVC, black; 4 x 0.5 mm² / AWG 20 |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0453-00 — 30.03.2011 —
