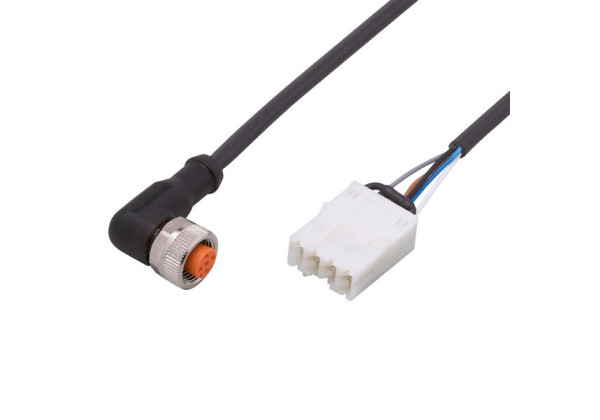

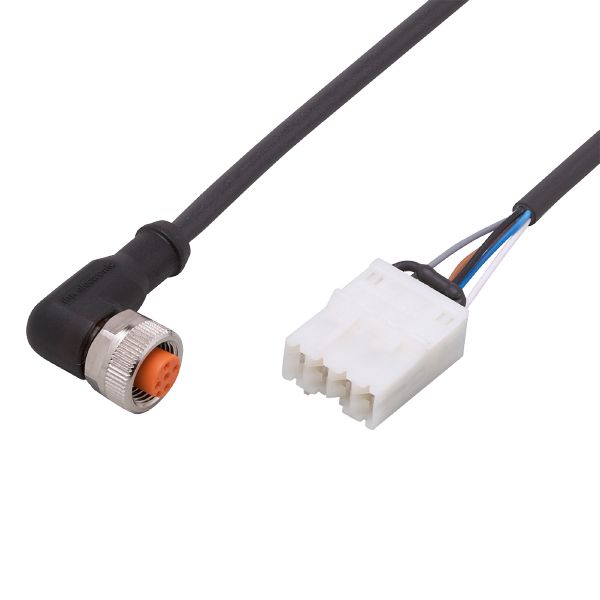

EC0454 Prewired jumper with contact housing BasicCable/Display 5m
Brand: IFM Electronic
Code: EC0454
- For the connection of controllers and dialogue units
- Reliable signal transmission for CAN devices
- With integrated CAN bus terminating resistors in contact housing and connector
- Large operating temperature range for use in mobile machines
- Wired for voltage supply and signal transmission
Application
| Design | wired, for BasicController and BasicDisplay, 1 x CR04xx, 1 x CR045x |
|---|---|
| Application | power supply; CAN bus |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|
Mechanical data
| Weight [g] | 194.4 |
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 5 m; 5 x 0.34 mm² |
|---|---|
| Connection | Connector: 1 x M12 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0454-00 — 13.04.2012 —
