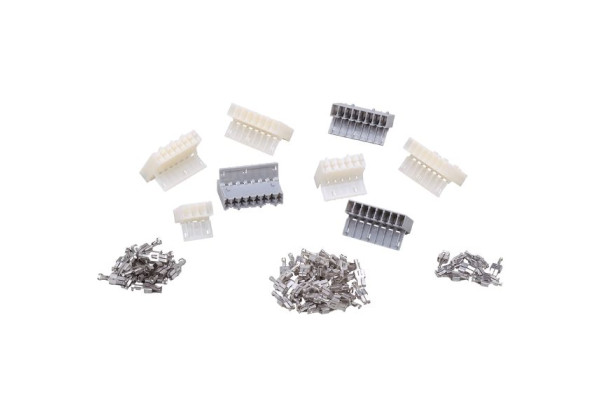

EC0456 Standard timer contact housing with contacts Basic/Connection Set

EC0456 Standard timer contact housing with contacts Basic/Connection Set

Code: EC0456
  • For the connection of controllers and dialogue units
  • For utilising all connections of a controller
  • Reliable signal transmission for CAN devices
  • Can be coded and cut to size
Application
Design for BasicController, utilising all connections to a BasicController, CR04xx
Mechanical data
Weight [g] 77.5
Accessories

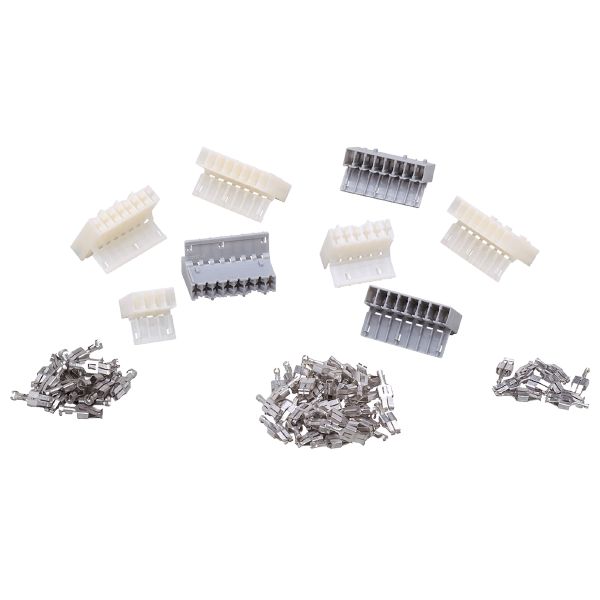

Items supplied
Standard timer contact housing: 3, 8-pole, grey (A/B/C = inputs)
Standard timer contact housing: 3, 8-pole, natural (D/E/F = outputs)
Standard timer contact housing: 1, 6-pole, natural (P/N1 = CAN1 and supply)
Standard timer contact housing: 1, 4-pole, natural (N2 = CAN2)
standard timer contacts: 10 x 0,2...0,5 mm², tin-plated
standard timer contacts: 40 x 0,5...1,0 mm², tin-plated
standard timer contacts: 20 x 1,0...2,5 mm², tin-plated
Remarks
Pack quantity 1 pcs.
Electrical connection - 10x
Standard timer contact: 0.2...0.5 mm²
Electrical connection - 20x
Standard timer contact: 1.0...2.5 mm²
Electrical connection - 40x
Standard timer contact: 0.5...1.0 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0456-00 — 24.09.2015 —
