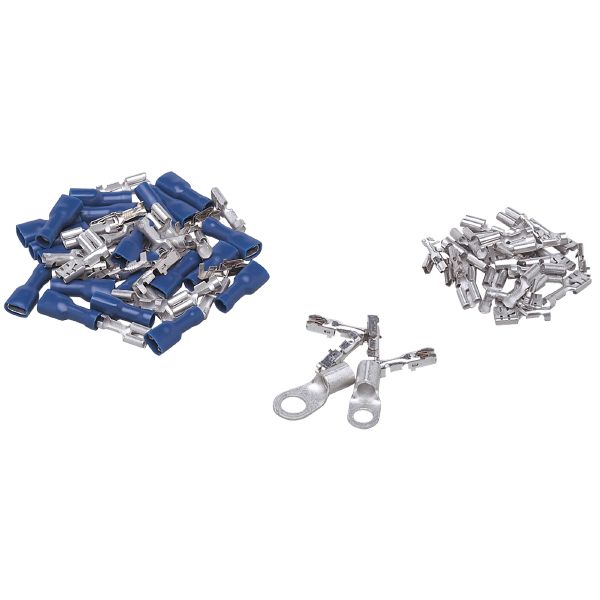

EC0457 Wirable plug set for mobile controllers BasicContact-Set/for CR0421

Code: EC0457

For the connection of relays
Complete set of contacts for relay contacts, power distributors and voltage supply
For installation in contact housings
For safe electrical connections

Application

Design	for BasicRelay, utilising all connections to a BasicRelay, CR0421

Mechanical data

Weight [g]	85.5
Dimensions [mm]	134.5 x 50.6 x 210

Accessories

Items supplied

blade female terminals for relay contacts: 10 x 2,8 x 0,8 mm (0,5...1,0 mm²), DIN 46340

blade female terminals for relay contacts: 20 x 6,3 x 0,8 mm (0,5...1,0 mm²), DIN 46340

blade female terminals for relay contacts: 20 x 6,3 x 0,8 mm (1,0...2,5 mm²), DIN 46340

blade female terminals for power distributors: 20 x 6,3 x 0,8 mm (1,0...2,5 mm²), fully insulated DIN 46245

contacts for automotive fuse holders: 6 x 0,5...1,5 mm²

contacts for automotive fuse holders: 4 x 2,0...3,0 mm²

ring terminals for power supply: 1 x M6 (10 mm²), DIN 46234

ring terminals for power supply: 1 x M8 (10 mm²), DIN 46234

Nuts: 1 x M6, galvanised ISO 4032

Nuts: 1 x M8, galvanised ISO 4032

Electrical connection

	terminals:
