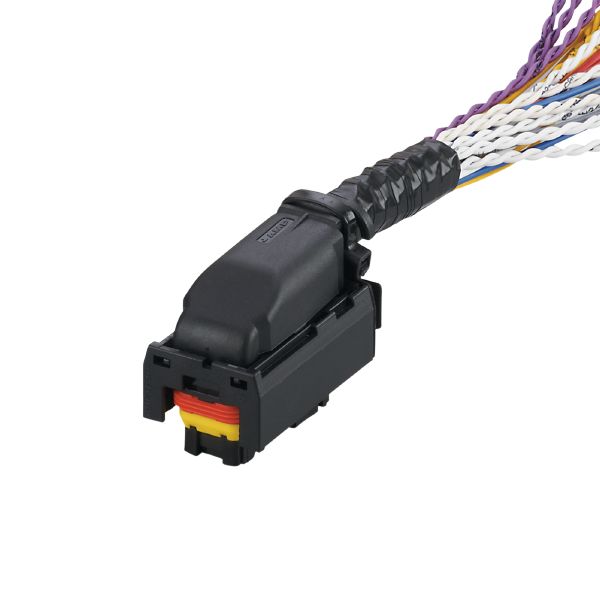

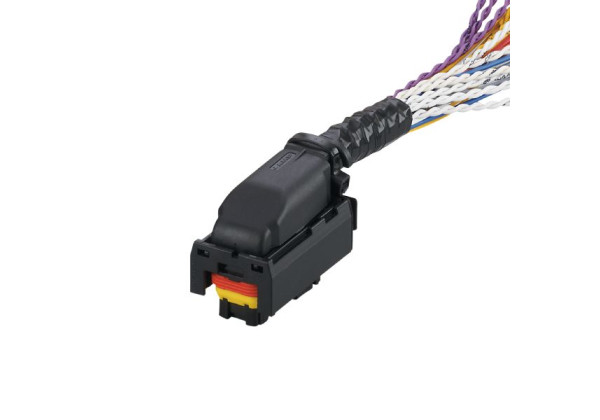

EC0705 Connecting cable with AMP connector ecomatDisplay/Cable/40p/2.5m
Brand: IFM Electronic
Code: EC0705
- Lockable AMP connector with reverse polarity protection
Electrical data
| Operating voltage [V] | 36 DC |
|---|---|
| Reverse polarity protection | yes |
Operating conditions
| Ambient temperature [°C] | -40...105 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 896 |
|---|---|
| Dimensions [mm] | 10 x 10 x 10 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2.5 m, PVC; FLRY-B; 32 x 0.5 mm² + 5 x 1.0 mm² + 3 x 2.5 mm² |
Electrical connection - AMP connector
| Video | Connector: 1 x AMP-Junior Timer; Moulded body: PBT, black |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0705-01 — 02.11.2023 —
