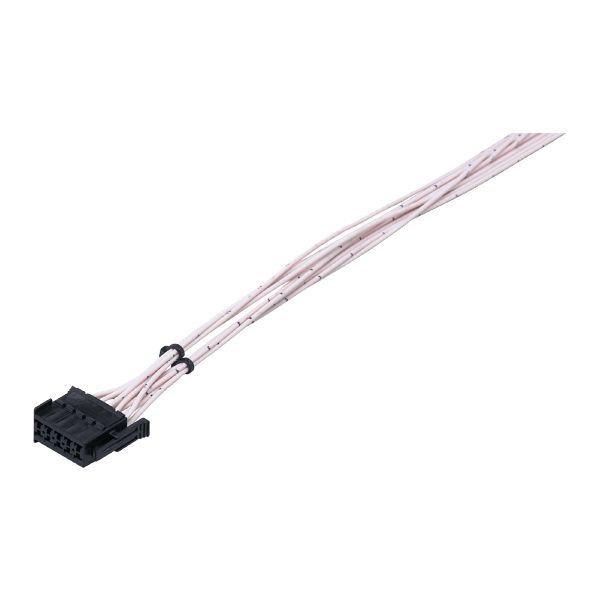

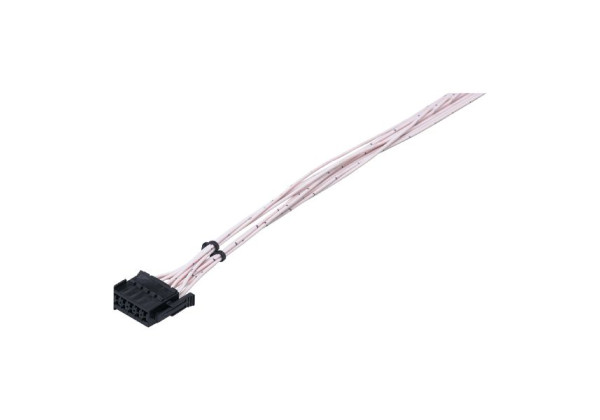

EC1521 Connecting cable with AMP connector R360/CabinetCable/10 pins
Brand: IFM Electronic
Code: EC1521
- For a reliable signal transmission of controllers and dialogue modules
- Wide operating temperature range
- For applications in mobile machines and in particularly harsh industrial environments
- AMP connector for the fast and easy connection to the on-board system
- Lockable connector with reverse polarity protection
Application
| Design | for CabinetController |
|---|
Electrical data
| Operating voltage [V] | 30 AC / 36 DC |
|---|
Mechanical data
| Weight [g] | 147.7 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 1.2 m; 1 mm² | |
| Connector: 1 x AMP |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC1521-00 — 05.11.2020 —
