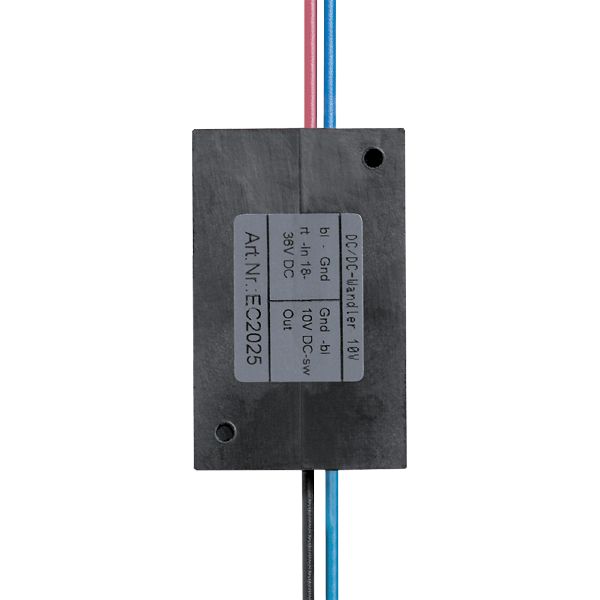

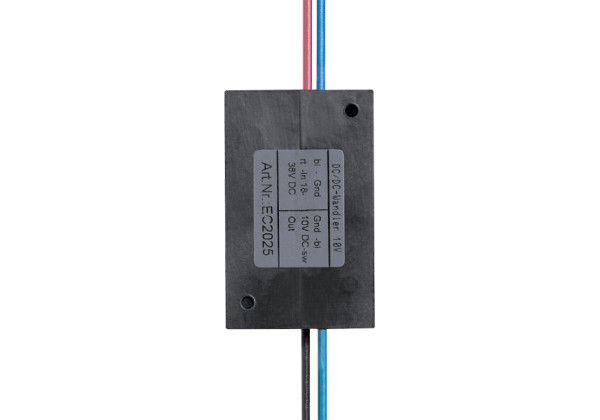

EC2025 DC-DC converter R360/DC/DC-CONVERTER/10V
Brand: IFM Electronic
Code: EC2025
- Provision of a stabilised supply voltage
- Robust fully potted housing
- Simple connection via strands with wire end ferrules
Application
| Design | housing module |
|---|
Electrical data
| Operating voltage [V] | 18...36 DC |
|---|
Outputs
| Output voltage [V] | 10 |
|---|---|
| Short-circuit protection | yes |
| Overload protection | yes |
Accuracy / deviations
| Accuracy | ± 2 % |
|---|
Operating conditions
| Ambient temperature [°C] | -25...71 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 71 |
|---|---|
| Dimensions [mm] | 54 x 34 x 15 |
| Materials | housing: polyamide glass fibre reinforced full potting |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| input | Cable: 0.28 m;, Core ends with wire end sleeves |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC2025-01 — 12.12.2019 —
