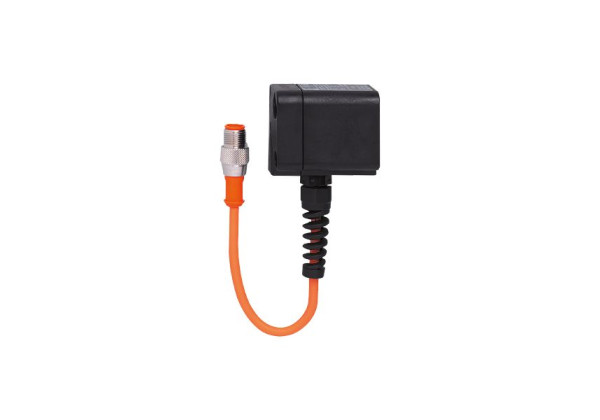

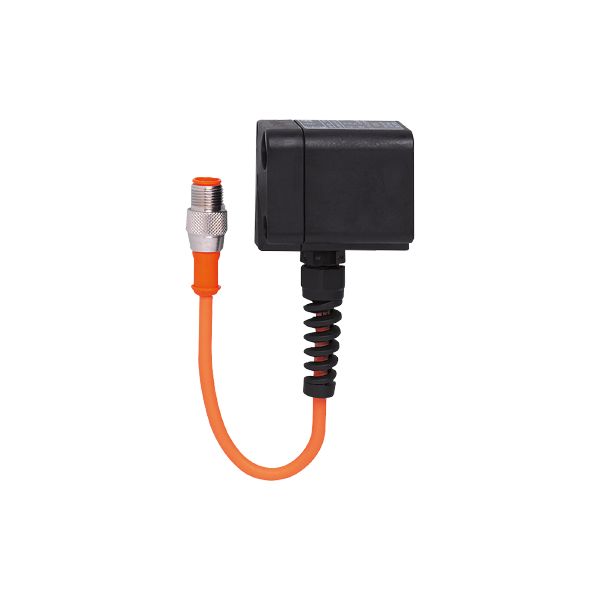

EC2060 Inclination sensor R360/INCLINOMETER/4-20mA
Brand: IFM Electronic
Code: EC2060
- Precise detection of angles of inclination
- High repeatability
- Precise analogue output
- Suited for use in mobile machines
Product characteristics
| Number of measurement axes | 1 |
|---|---|
| Angular range [°] | ± 20 |
Application
| Operating principle | static |
|---|
Electrical data
| Operating voltage [V] | 11...15 DC |
|---|---|
| Current consumption [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Output signal | analogue signal |
|---|---|
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 400 |
| Overload protection | yes |
Measuring/setting range
| Number of measurement axes | 1 |
|---|---|
| Angular range [°] | ± 20 |
Accuracy / deviations
| Accuracy [°] | <±7; (the zero point error can be compensated for by adjusting the unit by ± 4°) |
|---|---|
| Repeatability [°] | 0,1 |
Operating conditions
| Ambient temperature [°C] | -30...85 |
|---|---|
| Storage temperature [°C] | -30...85 |
| Protection | IP 67 |
Tests / approvals
| MTTF [years] | 991 |
|---|
Mechanical data
| Weight [g] | 189.9 |
|---|---|
| Dimensions [mm] | 40.5 x 40.5 x 52.2 |
| Materials | housing: PPO |
| Tightening torque [Nm] | 1.8 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.2 m | |
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC2060-01 — 24.08.2023 —
