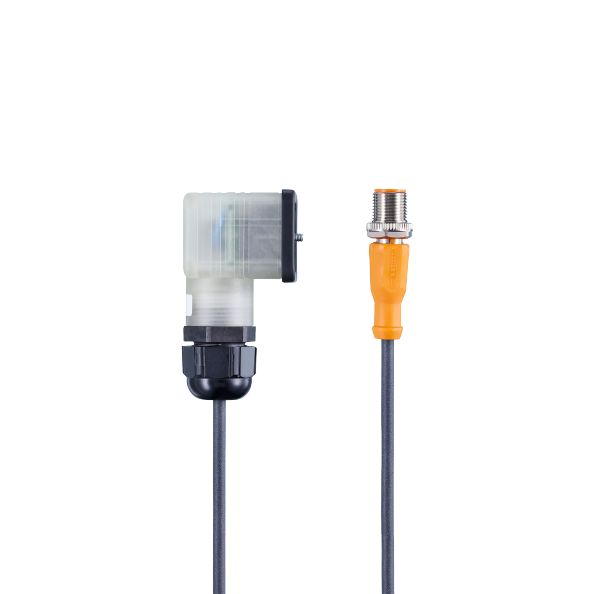

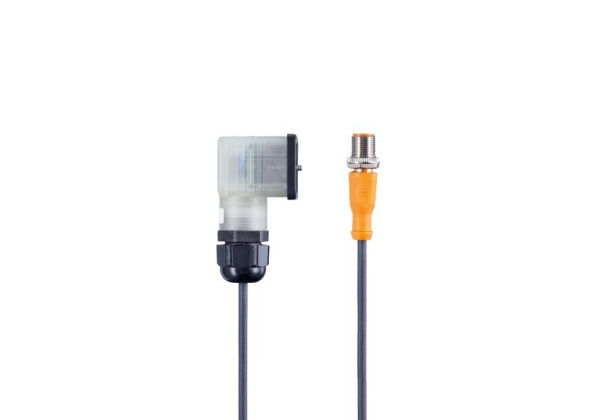

EC2088 Jumper cable with valve plug R360/DANFOSS PVEH-F/M12

Code: EC2088

Reliable connection of valves in the field
Angled type for use where space is restricted
Wide operating temperature range
Robust rectangular connector

Application

Special feature	Halogen-free

Electrical data

Operating voltage [V]	< 250 AC/DC
Protection class	II
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]

-25...90

Note on ambient temperature

valve plug: -30... 90 °C

M12 connector: -25... 90 °C

Protection

IP 65; (M12 connector: IP65, IP67, IP68, IP69K)

Mechanical data

Weight [g]	82
Moulded-body material	PA-GF, Halogen-free / TPU, Halogen-free
Material nut	steel, galvanised / brass, nickel-plated
Sealing material	NBR / CR

Remarks

Pack quantity	1 pcs.

Electrical connection - socket

	Connector: 1 x valve type A DIN, angled; Moulded body: PA-GF, Halogen-free, black; Locking: steel, galvanised; Sealing: NBR / CR; Contacts: brass; Tightening torque: 0.5...0.6 Nm

Electrical connection - Cable

Connection	Cable: 0.24 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, Halogen-free, orange; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm
