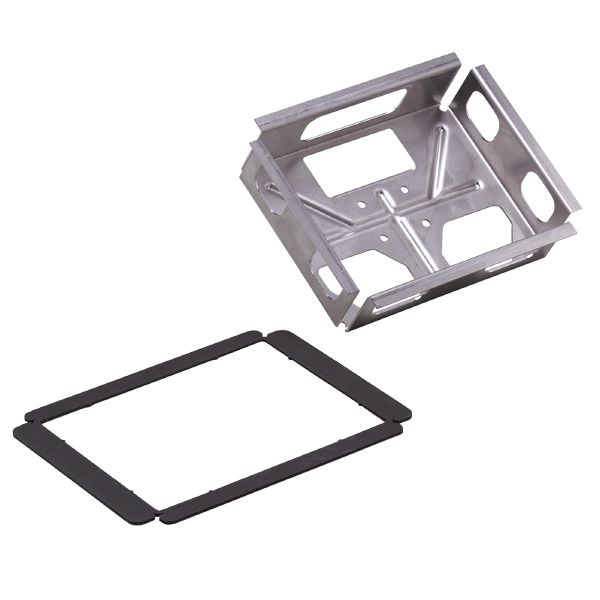

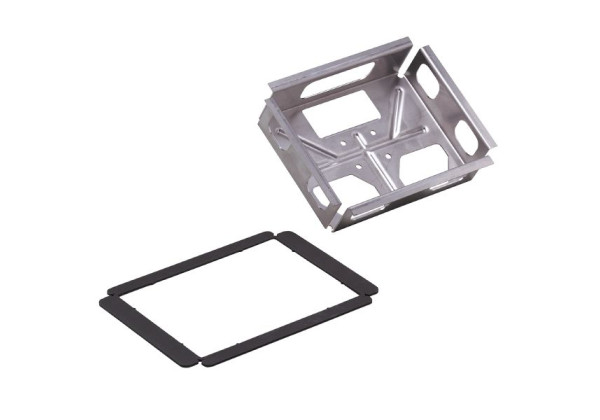

EC2110 Mounting frame for graphic displays R360/PDM_NG/Mounting Set
Brand: IFM Electronic
Code: EC2110
- For the stable and secure installation of displays and dialogue units
- Reliable sealing
- Efficient vibration absorption
- For applications in mobile machines and in particularly harsh industrial environments
Application
| Design | for process and dialogue modules PDM360 NG |
|---|
Mechanical data
| Weight [g] | 702 |
|---|---|
| Type of mounting | installation |
| Dimensions [mm] | 163.5 x 210 x 50.6 |
| Materials | steel sheet |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC2110-00 — 26.10.2010 —
