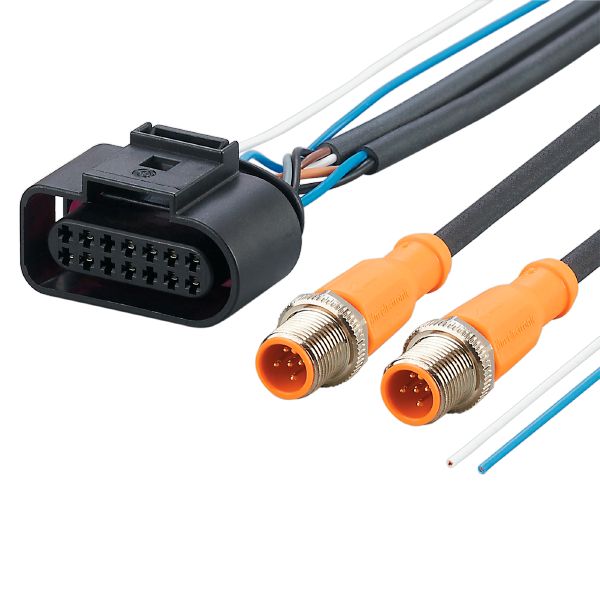

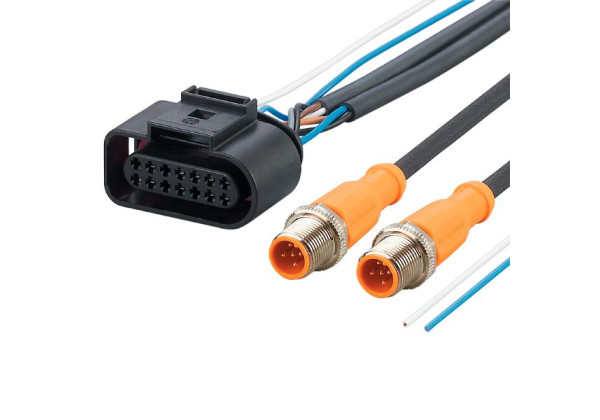

EC3148 Y connection cable Cable/Plug&Play/M12/0.6m
Brand: IFM Electronic
Code: EC3148
- For a reliable signal transmission
- Wide operating temperature range
- For applications in mobile machines and in particularly harsh industrial environments
- Lockable AMP connector with reverse polarity protection
Application
| Design | Adapter cable |
|---|
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -20...85 |
|---|
Mechanical data
| Weight [g] | 109 |
|---|---|
| Materials | housing: PBT black; socket: TPU orange; Sealing: Viton |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - C
| Connector: 1 x AMP connector, straight |
Electrical connection
| Connection | Cable: 0.6 m, PUR, black, Ø 5.1 mm; 5 x 0.5 mm² |
|---|
Electrical connection - A
| Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm |
Electrical connection - B
| Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC3148-00 — 30.05.2023 —
