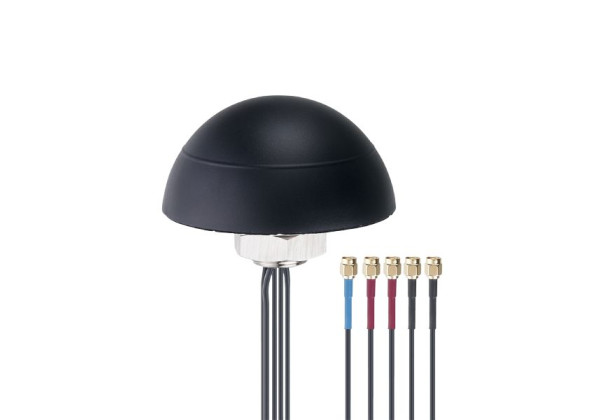

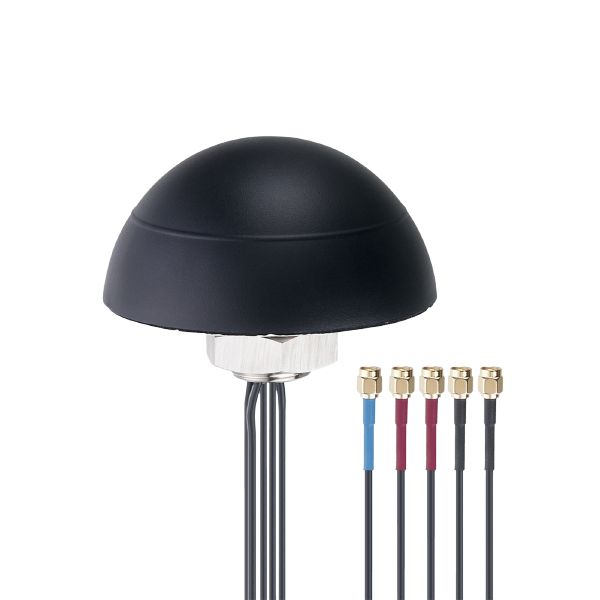

EC3170 Combined antenna for navigation and radio Mobile/GNSS/WIFI Antenna
Brand: IFM Electronic
Code: EC3170
Interfaces
| Frequency band | 1575,42...1610 MHz | |||||||
|---|---|---|---|---|---|---|---|---|
| Connector type | SMA | |||||||
| Note on interfaces |
|
| Transmission standard | LTE Cat-4 | |||
|---|---|---|---|---|
| Frequency band | LTE: 698...960 MHz; 1710...2690 MHz | |||
| Connector type | SMA | |||
| Note on interfaces |
|
| Frequency band | 2400...2483,5 MHz; 4900...5825 MHz | ||||
|---|---|---|---|---|---|
| Connector type | SMA | ||||
| Note on interfaces |
|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 597.5 |
|---|---|
| Type of mounting | screw mounting |
| Dimensions [mm] | Ø 110 / L = 55 |
| Materials | ABS |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - GPS
| Cable: 3 m | |
| Connector: 1 x SMA |
Electrical connection - Mobile networks
| Cable: 3 m | |
| Connector: 2 x SMA |
Electrical connection - WLAN
| Cable: 3 m | |
| Connector: 2 x SMA |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC3170-00 — 03.03.2022 —
