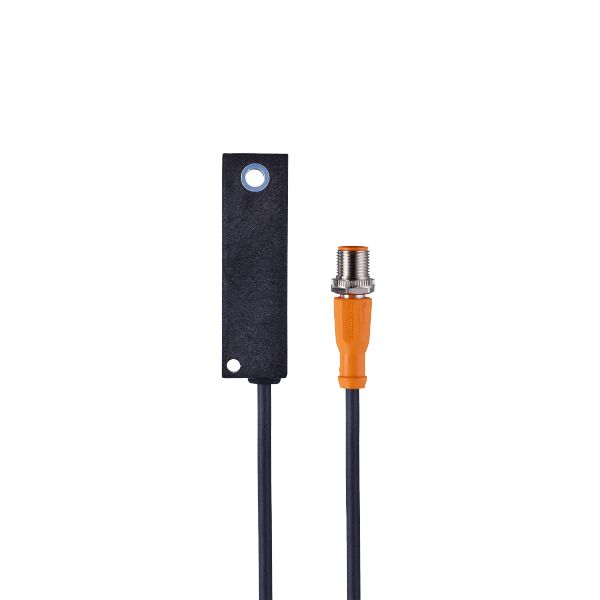

EC9203 tilt switch R360/CUSTOMER-SPECIFIC-UNIT
Brand: IFM Electronic
Code: EC9203
- Precise zero point detection
- High repeatability
- Precise switching output
- Compact design
Product characteristics
| Number of measurement axes | 1; (Z) |
|---|---|
| Angular range [°] | 1…-6 |
| Housing | plastic housing |
Application
| Operating principle | static; (noble metal with liquid) |
|---|
Electrical data
| Operating voltage [V] | 8...30 DC |
|---|---|
| Max. current consumption [mA] | 700 |
| Protection class | III |
| Reverse polarity protection | yes |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Output signal | switching signal |
|---|---|
| Number of digital outputs | 1 |
| Output function | normally open |
Measuring/setting range
| Note on setpoint SP |
| |||
|---|---|---|---|---|
| Number of measurement axes | 1; (Z) | |||
| Angular range [°] | 1…-6 |
Accuracy / deviations
| Accuracy [°] | 0,2 |
|---|---|
| Repeatability [°] | <0,2 |
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|---|
| Storage temperature [°C] | -30...80 |
| Protection | IP 67 |
Mechanical data
| Weight [g] | 68.3 |
|---|---|
| Housing | plastic housing |
| Type of mounting | Metallbuchse Ø 6,3 mm zur Befestigung des Neigungsschalters Loch Ø 4,5 mm zur Fixierung des Neigungsschalters |
| Dimensions [mm] | 75 x 22 x 18 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.25 m, PUR; 4 x 0.34 mm² |
Electrical connection - plug
| Connection | Connector: M12x1; coding: A; Tightening torque: 0.6...1.5 Nm |
|---|
