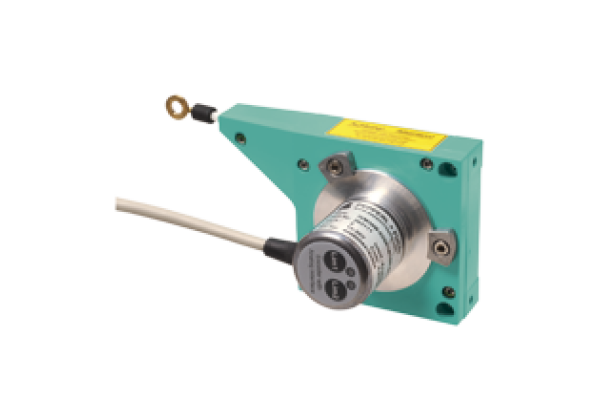

Cable pull rotary encoder ECA10TL - Analog
Brand: Pepperl+Fuchs
Code: ECA10TL - Analog
Cable pull rotary encoder with analog interface and push buttons, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Wide range of mounting options, Rust and acid-resistant measuring cable, Construction type: 80 mm, 130 mm, 190 mm
Datasheet excerpt: Technical data of ECA10TL - Analog
| Product Description |
|---|
| Cable pull rotary encoder with analog interface and push buttons |
| General specifications | ||
|---|---|---|
| Detection type | magnetic sampling | |
| Device type | Target line with analog interface | |
| Measuring range | 3000... 10000 mm | |
| Construction type | 80 mm, 130 mm, 190 mm | |
| Resolution | Cable pull: 80 mm design: 0,028 mm 130 mm design: 0,047 mm 190 mm design: 0,068 mm Encoder: 17 bit (13 bit/revolution) | |
| Electrical specifications | ||
| Operating voltage | 8... 32 V DC | |
| Current consumption | typ. 15 mA (with voltage output) typ. 20 mA (with current output) | |
| Input 1 | ||
| Input type | lower limit of measurement range | |
| Signal voltage | ||
| High | 8... 32 V DC | |
| Signal duration | min. 1 s | |
| Input 2 | ||
| Input type | upper limit of measurement range | |
| Signal voltage | ||
| High | 8... 32 V DC | |
| Signal duration | min. 1 s | |
| Analog output | ||
| Output type | analog voltage output or analog current output | |
| Default setting | rising ramp at ccw rotation | |
| Linearity error | ≤ 0.15 % | |
| Connection | ||
| Connector | M12 connector, 5 pin | |
| Cable | ∅6 mm, 4 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | acc. DIN EN 60529 | |
| Connection side | cable models: IP54 connector models: IP65 Cable pull: IP50 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Ambient conditions | ||
| Ambient temperature | -30... 70 °C (-22... 158 °F) | |
| Operating temperature | cable, flexing: -5... 70 °C (23... 158 °F) cable, fixed: -30... 70 °C (-22... 158 °F) connector models: -30... 70 °C (-22... 158 °F) | |
| Storage temperature | -30... 70 °C (-22... 158 °F) | |
| Relative humidity | 98 % , no moisture condensation | |
| Mechanical specifications | ||
| Rope diameter | 0.55 mm | |
| Material | ||
| Housing | nickel-plated steel | |
| Cable pull | design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17 | |
| Flange | Aluminum | |
| Rope | Stainless steel 1.4401/316 | |
| Life span | up to 106 Cycles | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270503 |
| ECLASS 12.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 10.0.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 5.1 | 27270502 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
