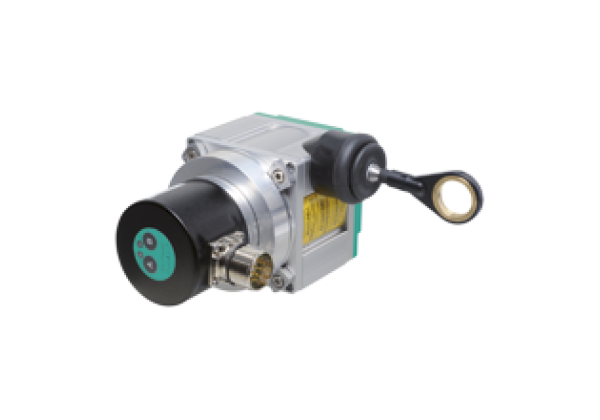

Cable pull rotary encoder ECA30PL - SSI
Brand: Pepperl+Fuchs
Code: ECA30PL - SSI
Cable pull rotary encoder with SSI interface, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Comprehensive accessories, Housing can be coated as an option (Hart Coat), Construction type: 80 mm, 130 mm, 190 mm, Interface type: SSI
Datasheet excerpt: Technical data of ECA30PL - SSI
| Product Description |
|---|
| Cable pull rotary encoder with SSI interface |
| General specifications | ||
|---|---|---|
| Detection type | magnetic sampling | |
| Device type | Premium Line with SSI interface | |
| Measuring range | 1000... 60000 mm | |
| Construction type | 80 mm, 130 mm, 190 mm | |
| Resolution | Cable pull: Design 80 mm: 0,024 mm Design 130 mm: 0,041 mm Design 190 mm: 0,059 mm Encoder: 25 Bit (13 Bit/revolution) | |
| Functional safety related parameters | ||
| B10d | 300000 | |
| Electrical specifications | ||
| Operating voltage | 4.75... 30 V DC | |
| No-load supply current | typ. 50 mA | |
| Power consumption | approx. 1.5 W | |
| Time delay before availability | < 450 ms | |
| Output code | Gray code, binary code | |
| Code course (counting direction) | adjustable | |
| Interface | ||
| Interface type | SSI | |
| Cycle time | < 100 µs | |
| Standard conformity | RS 422 | |
| Input 1 | ||
| Input type | Selection of counting direction (cw/ccw) | |
| Signal voltage | ||
| High | 4.75 V... UB (cw descending) | |
| Low | 0... 2 V or unconnected (cw ascending) | |
| Input current | < 6 mA | |
| Input 2 | ||
| Input type | zero-set (PRESET 1) with falling edge | |
| Signal voltage | ||
| High | 4.75 V... UB | |
| Low | 0... 2 V | |
| Input current | < 6 mA | |
| Connection | ||
| Connector | M12 connector, 8-pin or M23 connector, 12-pin | |
| Cable | ∅7 mm, 6 x 2 x 0.14 mm2, 1 m (cable length, see order code) | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Ambient conditions | ||
| Ambient temperature | -30... 70 °C (-22... 158 °F) | |
| Operating temperature | -30... 70 °C (-22... 158 °F) | |
| Storage temperature | -30... 70 °C (-22... 158 °F) | |
| Relative humidity | 98 % , no moisture condensation | |
| Mechanical specifications | ||
| Rope diameter | 1.35 mm | |
| Bending radius | min. 17 mm | |
| Breaking force | min. 1227 N | |
| Material | ||
| Cable pull | anodized aluminum or aluminum with Hart Coat coating | |
| Rotary encoder | housing: nickel-plated steel Flange: aluminum | |
| Flange | aluminum | |
| Rope | Stainless steel 1.4401/316 | |
| Life span | up to 106 Cycles | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270503 |
| ECLASS 12.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 10.0.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 5.1 | 27270502 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
