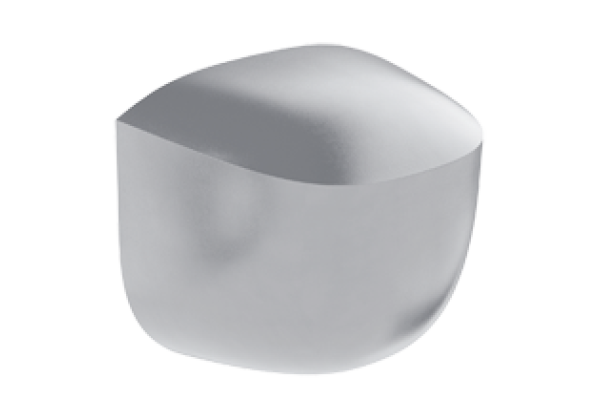

Radar motion sensor ECHO-D silver
Brand: Pepperl+Fuchs
Code: ECHO-D silver
Standard radar motion sensor, Detection of people and objects for automatic doors, Bidirectional sensing and adjustment of detection field, Remote control or push button for functionality setting, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor
Datasheet excerpt: Technical data of ECHO-D silver
| Product Description |
|---|
| Standard radar motion sensor with basic functionality, detection range 2 m x 4.5 m, max. installation height 4 m, silver housing, solid-state relay, cable connection |
| General specifications | ||
|---|---|---|
| Sensing range | 2000 x 4500 mm (DxW) at 2200 mm mounting height and 30° inclination angle | |
| Function principle | Microwave module | |
| Detection speed | min. 0.05 m/s | |
| Setting angle | ||
| Rotation angle | -40... 40 ° in 5 ° increments | |
| Inclination angle | 0... 90 ° in 5 ° increments | |
| Operating frequency | 24.15... 24.25 GHz K-Band | |
| Operating mode | Radar motion sensor | |
| Transmitter radiated power (EIRP) | < 20 dBm | |
| Functional safety related parameters | ||
| MTTFd | ||
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | detection : LED green push button indication : LED yellow / green | |
| Control elements | Push button for selection of operating modes : sensitivity , direction detection , cross-traffic suppression , slow-motion mode , relay switching type , hold time , immunity | |
| Electrical specifications | ||
| Operating voltage | 12... 24 V DC ± 10 % | |
| No-load supply current | ≤ 55 mA at 24 V DC | |
| Power consumption | ≤ 1.32 W | |
| Output | ||
| Switching type | Normally open/closed (NO/NC) | |
| Signal output | solid-state relay | |
| Switching voltage | max. 28 V AC / 36 V DC | |
| Switching current | max. 0.1 A AC / 0.1 A DC | |
| Hold time | 1.5 s / 3 s | |
| Approvals and certificates | ||
| CE conformity | 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | -20... 55 °C (-4... 131 °F) | |
| Storage temperature | -30... 70 °C (-22... 158 °F) | |
| Relative humidity | max. 90 % non-condensing | |
| Mechanical specifications | ||
| Mounting height | max. 4 m | |
| Degree of protection | IP54 | |
| Connection | Connecting cable 2.5 m included with delivery | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Mass | approx. 70 g | |
| Dimensions | 75 mm x 64 mm x 50 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274501 |
| ECLASS 12.0 | 27280890 |
| ECLASS 11.0 | 27280890 |
| ECLASS 10.0.1 | 27280890 |
| ECLASS 9.0 | 27280890 |
| ECLASS 8.0 | 27280890 |
| ECLASS 5.1 | 27270990 |
| ETIM 9.0 | EC004807 |
| ETIM 8.0 | EC000138 |
| ETIM 7.0 | EC000138 |
| ETIM 6.0 | EC000138 |
| ETIM 5.0 | EC000138 |
| UNSPSC 12.1 | 39121528 |
