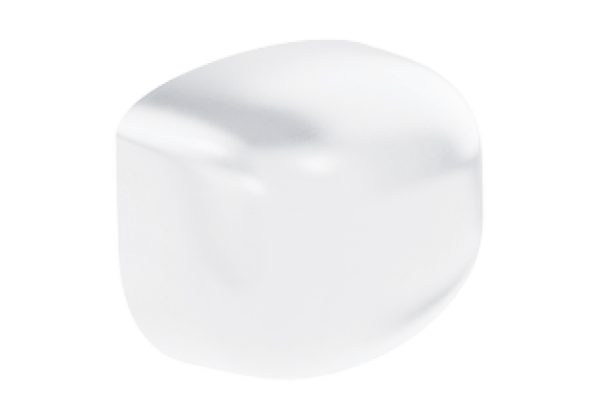

Radar motion sensor ECHO-M white
Brand: Pepperl+Fuchs
Code: ECHO-M white
Basic radar motion sensor, Detection of people and objects for automatic doors, Simplest adjustment of the sensing range, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor
Datasheet excerpt: Technical data of ECHO-M white
| Product Description |
|---|
| Basic radar motion sensor, detection range 2 m x 4 m, max. installation height 3 m, white housing, solid-state relay, cable adapter |
| General specifications | ||
|---|---|---|
| Sensing range | 2000 x 4000 mm (DxW) at 2200 mm mounting height and 30° inclination angle | |
| Function principle | Microwave module | |
| Detection speed | min. 0.1 m/s | |
| Setting angle | ||
| Rotation angle | -40... 40 ° in 5 ° increments | |
| Inclination angle | 0... 90 ° in 5 ° increments | |
| Operating frequency | 24.15... 24.25 GHz K-Band | |
| Operating mode | Radar motion sensor | |
| Transmitter radiated power (EIRP) | < 13 dBm | |
| Functional safety related parameters | ||
| MTTFd | 766 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | detection : LED green push button indication : LED yellow | |
| Control elements | sensitivity adjustment with push button | |
| Electrical specifications | ||
| Operating voltage | 12... 24 V DC ± 10 % | |
| No-load supply current | ≤ 50 mA at 24 V DC | |
| Power consumption | ≤ 1.2 W | |
| Output | ||
| Switching type | Normally open (NO) | |
| Signal output | solid-state relay | |
| Switching voltage | max. 28 V AC / 36 V DC | |
| Switching current | max. 0.1 A AC / 0.1 A DC | |
| Hold time | 1.5 s | |
| Approvals and certificates | ||
| CE conformity | 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | -20... 55 °C (-4... 131 °F) | |
| Storage temperature | -30... 70 °C (-22... 158 °F) | |
| Relative humidity | max. 90 % non-condensing | |
| Mechanical specifications | ||
| Mounting height | max. 3 m | |
| Degree of protection | IP54 | |
| Connection | cable Adapter 35 mm included with delivery ; for conductor cross section 0.2... 0.5 mm2 | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Mass | approx. 70 g | |
| Dimensions | 75 mm x 64 mm x 44 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274501 |
| ECLASS 12.0 | 27280890 |
| ECLASS 11.0 | 27280890 |
| ECLASS 10.0.1 | 27280890 |
| ECLASS 9.0 | 27280890 |
| ECLASS 8.0 | 27280890 |
| ECLASS 5.1 | 27270990 |
| ETIM 9.0 | EC004807 |
| ETIM 8.0 | EC000138 |
| ETIM 7.0 | EC000138 |
| ETIM 6.0 | EC000138 |
| ETIM 5.0 | EC000138 |
| UNSPSC 12.1 | 39121528 |
