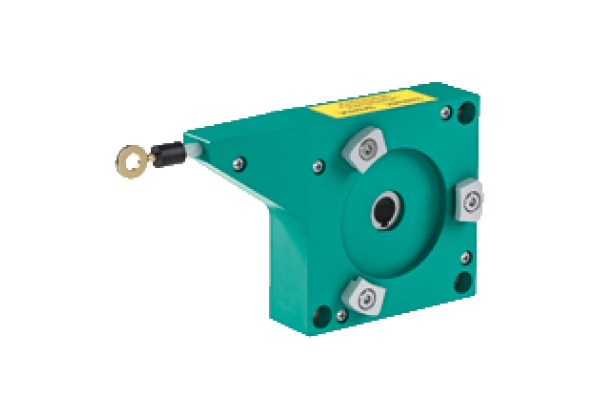

Cable pull ECN10TL-*
Brand: Pepperl+Fuchs
Code: ECN10TL-*
Cable pull, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the flange-mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Multitude of mounting possibilities, Rust and acid-resistant measuring cable, Construction type: 80 mm, 130 mm, 190 mm
Datasheet excerpt: Technical data of ECN10TL-*
| Product Description |
|---|
| Cable pull |
| General specifications | ||
|---|---|---|
| Device type | Target Line | |
| Measuring range | 3000... 10000 mm | |
| Construction type | 80 mm, 130 mm, 190 mm | |
| Ambient conditions | ||
| Ambient temperature | -30... 70 °C (-22... 158 °F) | |
| Mechanical specifications | ||
| Rope diameter | 0.55 mm | |
| Degree of protection | IP50 | |
| Material | ||
| Housing | design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17 | |
| Rope | Stainless steel 1.4401/316 | |
| Life span | up to 106 Cycles | |
| General information | ||
| Scope of delivery | Shaft adapter for rotary encoder with shaft dimension ∅ 6 mm x 10 mm up to 20 mm , adapter flange , Mounting clips , 3 x M4 x 8 bolts for mounting the adapter , Cover disk , Hexagon socket wrench, 1.3 AF | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27279103 |
| ECLASS 5.1 | 27270591 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
