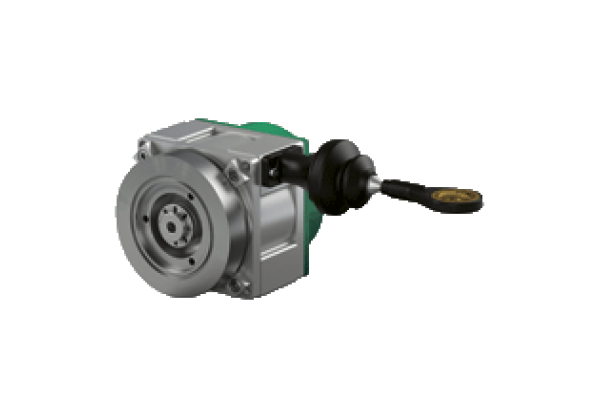

Cable pull ECN21IL-*
Brand: Pepperl+Fuchs
Code: ECN21IL-*
Cable pull, Robust aluminum drum housing, Compact design, Bellows with steel tip, Wide range of mounting options, Up to 5 m of measuring cable, Construction type: 80 mm, 130 mm
Datasheet excerpt: Technical data of ECN21IL-*
| Product Description |
|---|
| Cable pull |
| General specifications | ||
|---|---|---|
| Device type | Industrial Line | |
| Measuring range | 2000... 5000 mm | |
| Construction type | 80 mm, 130 mm | |
| Functional safety related parameters | ||
| B10d | 300000 | |
| Ambient conditions | ||
| Ambient temperature | -30... 70 °C (-22... 158 °F) | |
| Mechanical specifications | ||
| Rope diameter | 0.55 mm | |
| Retraction speed | 4 m/s | |
| Degree of protection | IP64 | |
| Material | ||
| Housing | anodized aluminum | |
| Rope | Stainless steel 1.4401/316 | |
| Life span | up to 106 Cycles | |
| General information | ||
| Scope of delivery | Shaft coupling for mounting a rotary encoder depending on the flange type , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270503 |
| ECLASS 12.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 10.0.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 5.1 | 27270502 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
