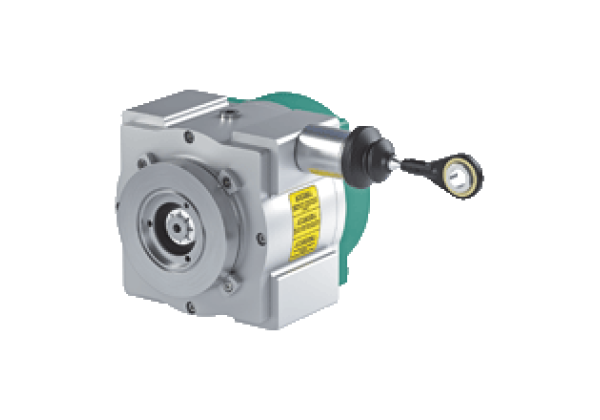

Cable pull ECN30PL-*
Brand: Pepperl+Fuchs
Code: ECN30PL-*
Cable pull, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Wide range of mounting options, Comprehensive accessories, Construction type: 80 mm, 130 mm, 190 mm
Datasheet excerpt: Technical data of ECN30PL-*
| Product Description |
|---|
| Cable pull |
| General specifications | ||
|---|---|---|
| Device type | Premium Line | |
| Measuring range | 1000... 60000 mm | |
| Construction type | 80 mm, 130 mm, 190 mm | |
| Ambient conditions | ||
| Ambient temperature | -30... 70 °C (-22... 158 °F) | |
| Mechanical specifications | ||
| Rope diameter | 1.35 mm 0.81 mm ( at measuring length 50000 mm ) | |
| Degree of protection | IP64 | |
| Material | ||
| Housing | anodized aluminum or Aluminum with Hart Coat coating | |
| Rope | Stainless steel 1.4401/316 | |
| Life span | up to 106 Cycles | |
| General information | ||
| Scope of delivery | Shaft coupling for mounting a rotary encoder depending on the flange type , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF | |
| Accessories | ||
| Optional accessories | #203843 SL-RP/GS80 Guide pulley, design 80 #203844 SL-RP/GS130/GS190 Guide pulley, design 130/190 #251600 SL-TRP/GS80 Double guide pulley, design 80 #251602 SL-TRP/GS130 Double guide pulley, design 130/190 #271371 SL-BA/GS80 Brush attachment, design 80 #271373 SL-BA/GS130/GS190 Brush attachment, design 130/190 #272502 SL-BCA Ball for ball joint | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27279103 |
| ECLASS 5.1 | 27270591 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
