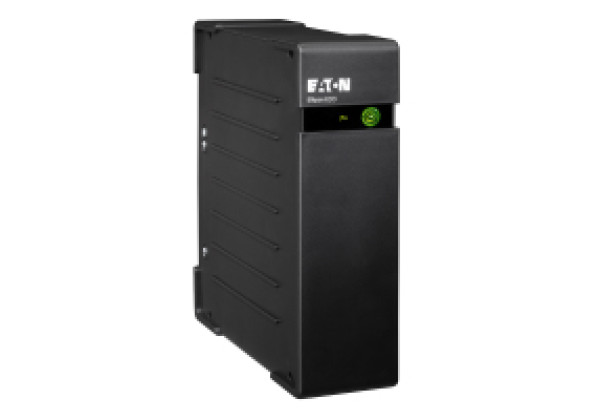

EL800USBIEC Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) 800 VA 500 W 4 AC outlet(s)

Code: EL800USBIEC

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

More information:

Weight & dimensions	Width	81 mm
	Depth	235 mm
	Height	263 mm
	Weight	4100 g
Battery	Battery technology	Sealed Lead Acid (VRLA)
	Typical backup time at half load	11 min
	Hot-swap battery	Yes
	Automatic battery test	Yes
	Cold start	Yes
Design	Form factor	Rackmount
	Product colour	Black
	Rack capacity	2U
	LED indicators	Battery replacement
	Safety	IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Features	Output power capacity	800 VA
	Output power	500 W
	Input operation voltage (min)	161 V
	Input operation voltage (max)	284 V
	Input frequency	50/60 Hz
	Output operation voltage (min)	220 V
	Output operation voltage (max)	240 V
	Emergency Power Off (EPO)	Yes
	Surge protection	Yes
	Surge protection features	Fax,Modem,Network,Telephone
	Audible alarm(s)	Yes
	Audible alarm modes	Battery replacement
Packaging data	Bundled software	Eaton Intelligent Power
Ports & interfaces	AC outlet types	C13 coupler
	Power plug	C14 coupler
	AC outlets quantity	4 AC outlet(s)
	USB 2.0 ports quantity	1
	Modem (RJ-11) ports	1
	Ethernet LAN (RJ-45) ports	1
Other features	Input connection type	IEC
	Mac compatibility	Yes
	Nominal output voltage	220-240 V
	Nominal input voltage	220 V
	Compatible operating systems	Windows 7/Vista/XP < br / Mac OS X < br / Linux
	Overload protection	Yes
