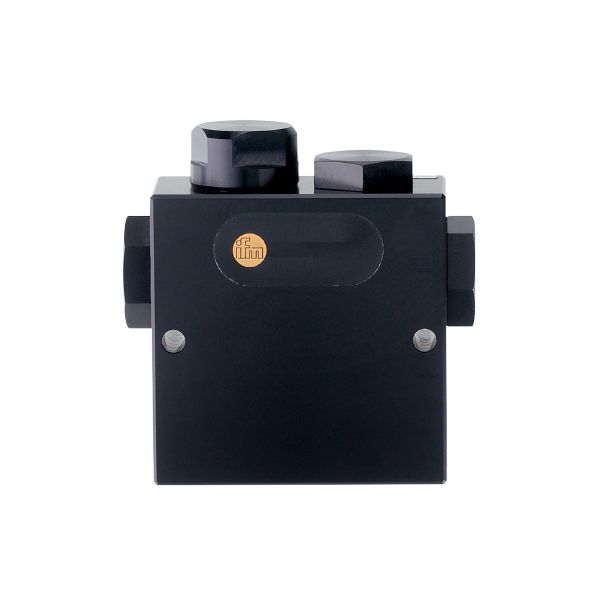

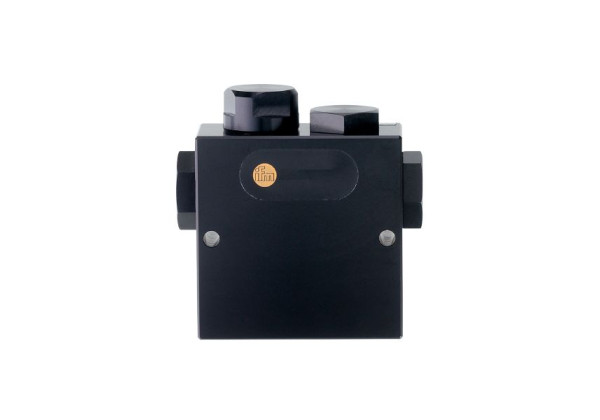

EM0013 manifold MANIFOLD
Brand: IFM Electronic
Code: EM0013
- Safe installation of process sensors in pipes
- For use in industrial environments
- High pressure rating
Application
| Application | replacement block |
|---|---|
| Pressure rating [bar] | 200 |
Mechanical data
| Weight [g] | 682 |
|---|---|
| Dimensions [mm] | 96.37 x 96 x 40 |
| Materials | aluminium anodised |
| Materials (wetted parts) | aluminium anodised; O-ring: FKM |
| Tightening torque [Nm] | 34 |
| Sensor connection | G 3/4 |
| Process connection | G 1/2 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EM0013-00 — 07.12.2020 —
