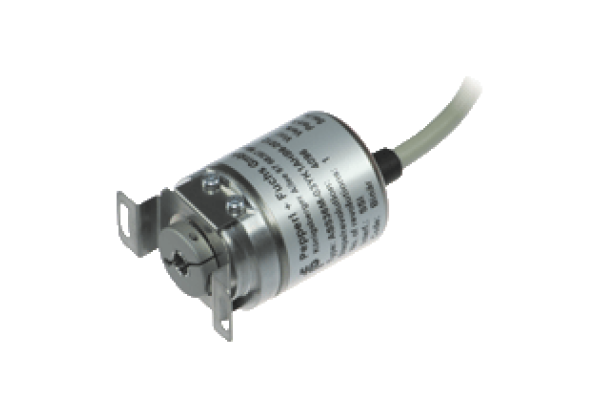

Multiturn absolute rotary encoder ENA36IL-R***-Analog
Brand: Pepperl+Fuchs
Code: ENA36IL-R***-Analog
Very small housing, High climatic resistance, 4 Bit multiturn, Models with analog voltage or current output, Surge and reverse polarity protection, Enclosure type: 36 mm, Type of shaft: Solid shaft, Detection type: magnetic sampling
Datasheet excerpt: Technical data of ENA36IL-R***-Analog
| General specifications | ||
|---|---|---|
| Detection type | magnetic sampling | |
| Device type | Absolute rotary encoder | |
| Measurement range | min. 0... 22.5 ° max. 65566 x 360 ° factory setting: 16 x 360" | |
| Resolution | 17 Bit (13 bits/revolution) | |
| UL File Number | E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. | |
| Electrical specifications | ||
| Operating voltage | 8... 32 V DC | |
| Current consumption | typ. 15 mA (with voltage output) typ. 20 mA (with current output) | |
| Input 1 | ||
| Input type | lower limit of measurement range | |
| Signal voltage | ||
| High | 8... 32 V DC | |
| Signal duration | min. 1 s | |
| Input 2 | ||
| Input type | upper limit of measurement range | |
| Signal voltage | ||
| High | 8... 32 V DC | |
| Signal duration | min. 1 s | |
| Analog output | ||
| Output type | analog voltage output or analog current output (see type code) | |
| Default setting | rising ramp at ccw rotation | |
| Linearity error | ≤ 0.15 % | |
| Load resistor | min. 5000 Ω (with voltage output) , min. 500 Ω (with current output) ; Max. value for supply voltage 8 V. For higher supply voltage lower load resistance can be used. | |
| Connection | ||
| Connector | M12 connector, 5 pin | |
| Cable | ∅6 mm, 4 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | acc. DIN EN 60529 | |
| Connection side | cable models: IP54 connector models: IP65 | |
| Shaft side | IP65 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. | |
| Ambient conditions | ||
| Operating temperature | cable, flexing: -5... 70 °C (23... 158 °F) cable, fixed: -30... 70 °C (-22... 158 °F) connector models: -40... 85 °C (-40... 185 °F) | |
| Storage temperature | cable models: -30... 70 °C (-22... 158 °F) connector models: -30... 85 °C (-22... 185 °F) | |
| Relative humidity | 98 % , no moisture condensation | |
| Mechanical specifications | ||
| Material | ||
| Housing | nickel-plated steel | |
| Flange | Aluminum | |
| Shaft | Stainless steel | |
| Mass | approx. 150 g , with cable | |
| Rotational speed | max. 12000 min -1 | |
| Moment of inertia | 30 gcm2 | |
| Starting torque | < 3 Ncm | |
| Shaft load | ||
| Axial offset | ± 0.3 mm static | |
| Radial offset | ± 0.5 mm static | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 10.0.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 5.1 | 27270502 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
