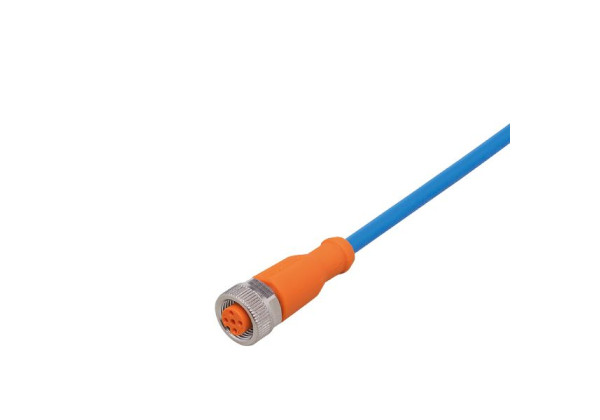

ENC07A - ecomat400-ADOGH050MSN0002H05/1G/1D

ENC07A - ecomat400-ADOGH050MSN0002H05/1G/1D

Code: ENC07A
  • For applications in hazardous areas
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Vibration and shock resistant thanks to coupling ring with locking mechanism
  • Mechanical end stop to protect the O-ring from destruction
Application
Special feature Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone yes
Compatible with paint yes
Electrical data
Operating voltage [V] < 30 DC
Protection class II
Max. input power [mW] group II: 1000; group IIIB: 1000; group IIIC: 550 (Ta < 90 °C) / 650 (Ta < 70 °C) / 750 (Ta < 40 °C)
Max. current load total [A] 1
Operating conditions
Ambient temperature [°C] -25...90
Note on ambient temperature
for use in hazardous areas: ambient temperature in accordance with unit marking
Protection IP 67; (when used outside the hazardous area: IP 68 / IP 69K)
Tests / approvals
Approval BVS 11 ATEX E 009 X; IECEx BVS 11.0002 X
ATEX marking II 1G Ex ia IIB T6 Ga Ta: -25...80°C
II 2G Ex ia IIC T6 Gb Ta: -25...80°C
II 1D Ex ia IIIC T85°C Da Ta: -25...80°C
II 1G Ex ia IIB T5 Ga Ta: -25...90°C
II 2G Ex ia IIC T5 Gb Ta: -25...90°C
II 1D Ex ia IIIC T95°C Da Ta: -25...90°C
Safety classification
Max. internal capacitance [nF] 0.2
Max. internal inductance [µH] 4
Mechanical data
Weight [g] 108.5
Dimensions [mm] 15.5 x 15.5 x 45
Materials housing: TPU orange; Sealing: FKM
Material nut brass, nickel-plated
Remarks
Remarks
Special conditions for safe operation apply for use in hazardous areas.
Observe the corresponding notes in the operating instructions (Ex protection related part).
Pack quantity 1 pcs.
Electrical connection
Cable: 2 m, PUR, Halogen-free, blue, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - socket
Connection Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — ENC07A — 11.05.2022 —
