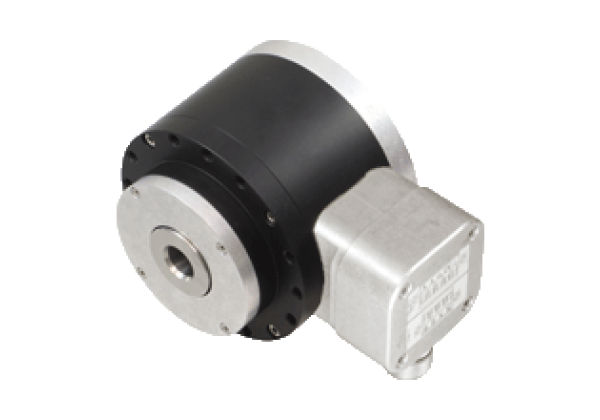

Heavy-duty incremental encoder ENI11HD-R
Brand: Pepperl+Fuchs
Code: ENI11HD-R
Up to 2500 ppr, Highly shock and vibration resistant, Recessed hollow shaft, Degree of protection IP66 / IP67 / IP69K, Optional: Electrically insulated shaft for a dielectric strength up to 2.5 kV, Output type: push-pull, incremental or RS 422, incremental
(see "Output circuit" in the ordering information)
Datasheet excerpt: Technical data of ENI11HD-R
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 2500 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10 | 50 E+9 at 1750 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information) | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | push-pull, incremental or RS 422, incremental (see "Output circuit" in the ordering information) | |
| Voltage drop | < 2.5 V (push-pull, incremental) | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental) | |
| Output frequency | max. 200 kHz | |
| Rise time | 600 ns | |
| De-energized delay | 600 ns | |
| Connection | ||
| Connector | M23 connector, 12-pin , clockwise rotation M23 connector, 12-pin , counter clockwise rotation | |
| Cable | ∅7,5 mm, 6 x 2 x 0,14 mm2 | |
| Terminal compartment | Cable duct for cable diameter ∅4 mm... 13 mm | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP66, IP67 or IP69K | |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 200 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz | |
| Ambient conditions | ||
| Operating temperature | -40... 80 °C (-40... 176 °F) fixed cable | |
| Storage temperature | -40... 80 °C (-40... 176 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | 3.2315 aluminum | |
| Flange | 3.2315 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 2200 g | |
| Rotational speed | max. 3000 min -1 | |
| Starting torque | ≤ 20 Ncm | |
| Shaft insulation | max. 2.5 kV (for dielectric strength version) | |
| Shaft load | ||
| Axial | ≤ 300 N | |
| Radial | ≤ 400 N | |
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
