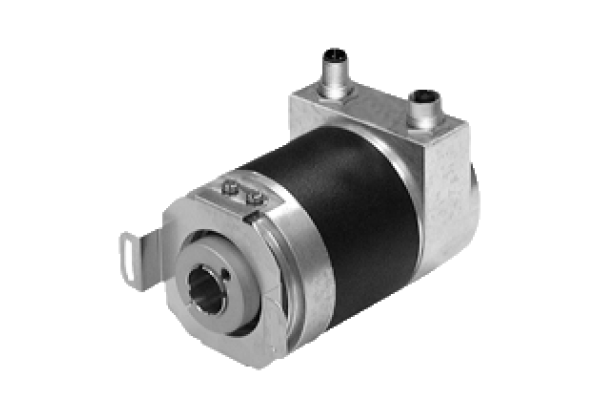

Singleturn absolute rotary encoder ESS58-TZ
Brand: Pepperl+Fuchs
Code: ESS58-TZ
Industrial standard housing ∅58 mm, Ethernet interface with TCP/IP, 16 Bit singleturn, Integrated webserver, Recessed hollow shaft
Datasheet excerpt: Technical data of ESS58-TZ
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Device type | Singleturn absolute rotary encoder | |
| Functional safety related parameters | ||
| MTTFd | 130 a | |
| Mission Time (TM) | 20 a | |
| L10 | 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Power consumption | max. 4 W | |
| Linearity | ± 0.5 LSB (12 Bit) , | |
| Output code | binary code | |
| Code course (counting direction) | programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) | |
| Interface | ||
| Interface type | TCP/IP | |
| Resolution | ||
| Single turn | up to 16 Bit | |
| Overall resolution | up to 16 Bit | |
| Physical | Ethernet | |
| Transfer rate | 10 MBit/s / 100 MBit/s | |
| Connection | ||
| Connector | Ethernet: 1 socket M12 x 1, 4-pin, D-coded Supply: 1 plug M12 x 1, 5-pin, A-coded | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, shaft side: IP64 (without shaft seal)/IP66 (with shaft seal) housing side: IP65 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | 0... 60 °C (32... 140 °F) Standard , with Option T -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Material | housing: powder coated aluminum flange: aluminum shaft: stainless steel | |
| Mass | approx. 500 g | |
| Rotational speed | max. 12000 min -1 without shaft seal max. 3000 min -1 with shaft seal | |
| Moment of inertia | 30 gcm2 | |
| Starting torque | ≤ 3 Ncm without shaft seal ≤ 5 Ncm with shaft seal | |
| Tightening torque, fastening screws | max. 1.8 Nm | |
| Shaft load | ||
| Angle offset | ± 0.9 ° | |
| Axial offset | static: ± 0.3 mm, dynamic: ± 0.1 mm | |
| Radial offset | static: ± 0.5 mm, dynamic: ± 0.2 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 10.0.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 5.1 | 27270502 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
