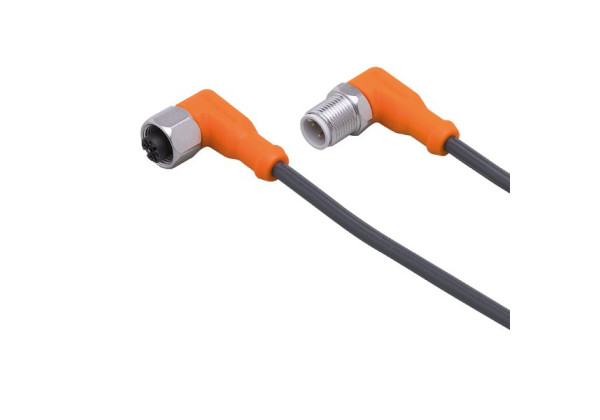

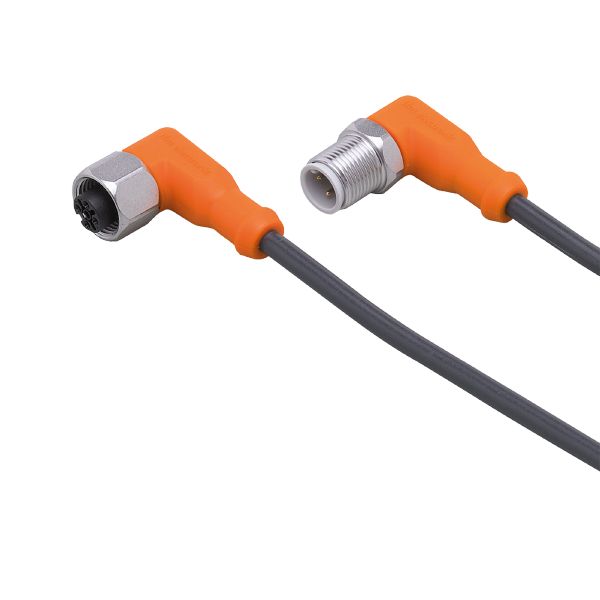

EVC10A Connection cable VDOAH040VAT00,6H04STAH040VAT
Brand: IFM Electronic
Code: EVC10A
- For applications in hazardous areas
- Resistant to oils and coolants
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
Application
| Special feature | Halogen-free; Gold-plated contacts |
|---|---|
| Compatible with paint | yes |
Electrical data
| Operating voltage [V] | < 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67; (when used outside the hazardous area: IP 68 / IP 69K) |
Tests / approvals
| Approval | BVS 08 ATEX E 109 U; IECEx BVS 08.0041 U |
|---|---|
| ATEX marking | |
Mechanical data
| Weight [g] | 70.5 |
|---|---|
| Dimensions [mm] | 31 x 15.5 x 36.5 |
| Materials | housing: TPU orange; Sealing: FKM |
| Material nut | stainless steel (1.4404 / 316L) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 1.2...1.5 Nm |
Electrical connection
| Connection | Cable: 0.6 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector: 1 x M12, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 1.2...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — EVC10A — 22.06.2023 —
