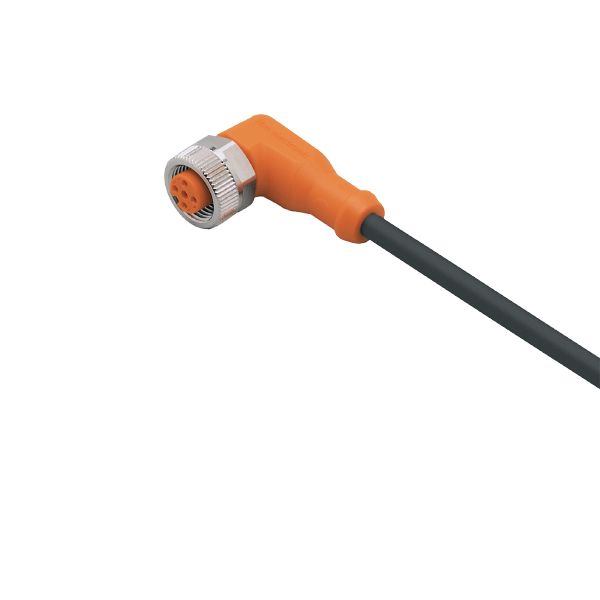

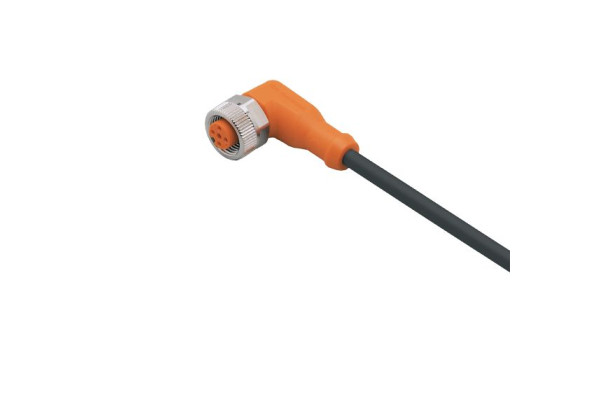

EVC492 - ecomat400-ADOAH050MSA0005H05
Brand: IFM Electronic
Code: EVC492
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Application | CAN bus |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 32 DC; (wires 4+5: 5 V) |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4; (wires 4+5: 0,05) |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Ambient temperature (moving) [°C] | -25...90 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 178.5 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 26.5 x 15.5 x 36.5 | ||||||||
| Materials | housing: TPU black; Sealing: FKM | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Remarks |
| |
|---|---|---|
| Notes | Please see the technical note under "Downloads" | |
| Pack quantity | 1 pcs. |
Electrical connection
| Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC492-00 — 05.11.2020 —
