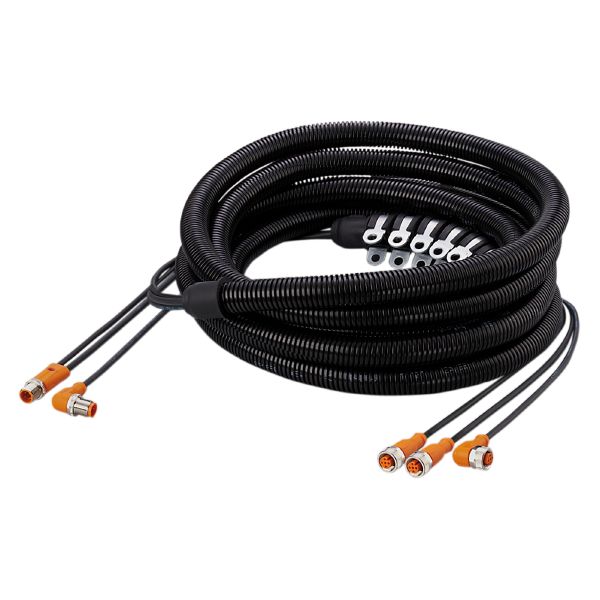

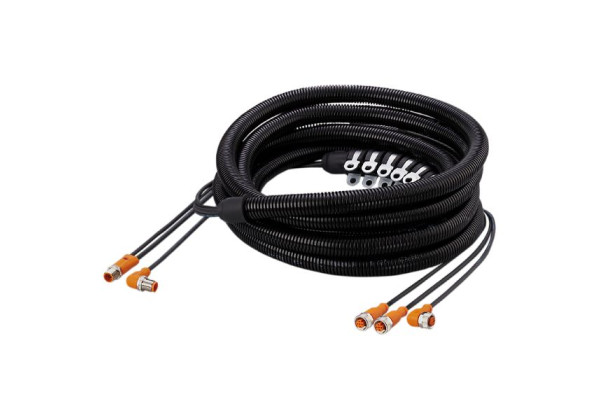

EVC507 - ecomat400-Multicable 1 x Y-Jumper M12
Brand: IFM Electronic
Code: EVC507
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Wide operating temperature range
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | < 250 AC / < 300 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -20...90 | |
|---|---|---|
| Ambient temperature (moving) [°C] | -20...90 | |
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 867 |
|---|---|
| Moulded-body material | TPU |
| Sealing material | FKM |
Remarks
| Notes | Please see the technical note under "Downloads" |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - plug
| Connector: M12; Moulded body: TPU, orange |
Electrical connection - socket
| Connector: M12; Moulded body: TPU, orange; Sealing: FKM |
Diagrams and graphs
| |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC507-01 — 13.04.2023 —
