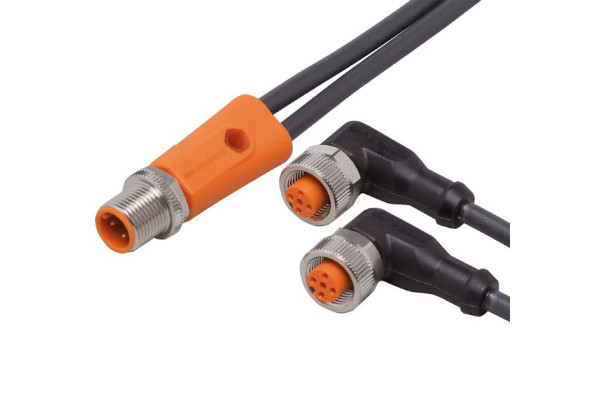

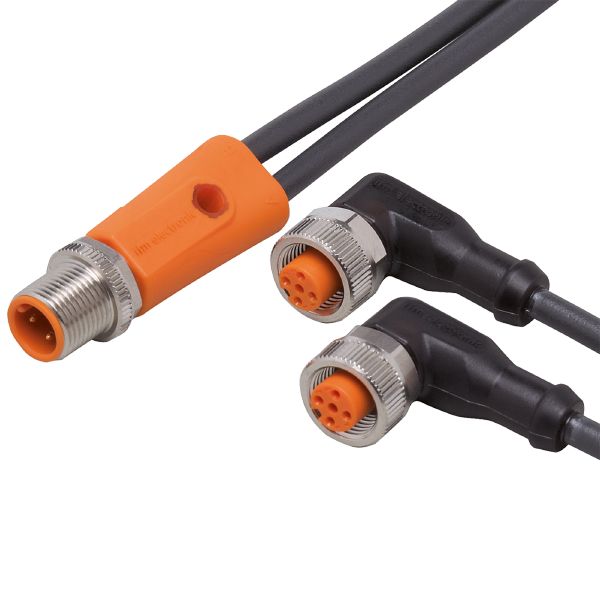

EVC523 - ecomat400-YDOAH032MSS0008H03STGH040MSS

Code: EVC523

Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	10...36 DC
Protection class	II
Max. current load total [A]	4

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]

-25...90

Note on ambient temperature

cULus:...75

Ambient temperature (moving) [°C]

-25...90

Note on ambient temperature (moving)

cULus:...75

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

513

Moulded-body material

TPU

Material nut

brass, nickel-plated

Sealing material

FKM

Number of ports splitter box

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Notes	Please see the technical note under "Downloads"
Pack quantity	1 pcs.

Electrical connection

	Cable: 8 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Diagrams and graphs

	Derating Imax * 0.8 DIN EN 60512-5-2
X	Ambient temperature [°C]
Y	Current [A]
