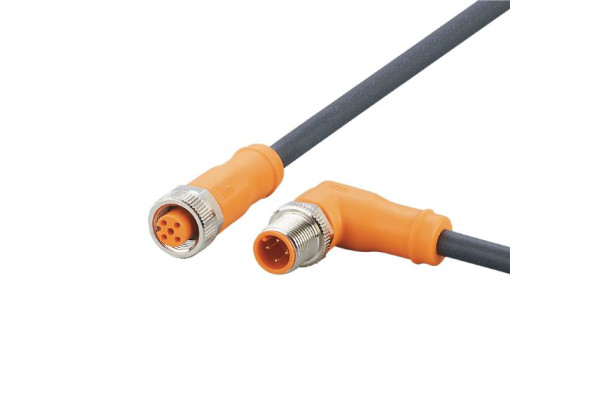

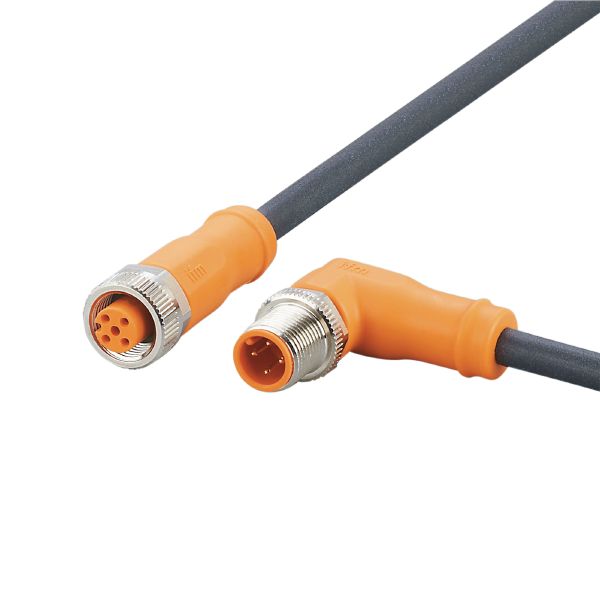

EVC734 - VDOGH040MSP0005H04STAH040MSP

Code: EVC734

Large cable cross-section for reducing the voltage drop and transferring higher currents
Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	< 250 AC / < 300 DC
Protection class	II
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]

-25...90

Ambient temperature (moving) [°C]

-25...90

Storage temperature [°C]

-25...55

Storage humidity [%]

10...100

Other climatic conditions for storage according to stated class

1K22/ DIN 60721-3-1

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

357.7

Dimensions [mm]

35.5 x 15.5 x 38

Materials

housing: TPU orange; Sealing: FKM

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

Connection	Cable: 5 m, PUR, Halogen-free, black, Ø 6.2 mm; 4 x 1.00 mm² (32 x Ø 0.2 mm )

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC734-01 — 13.04.2023 —
