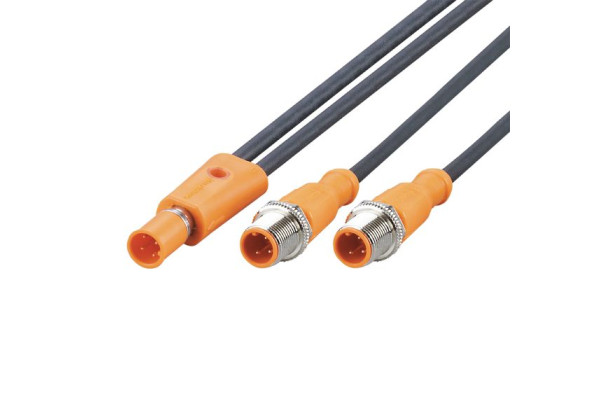

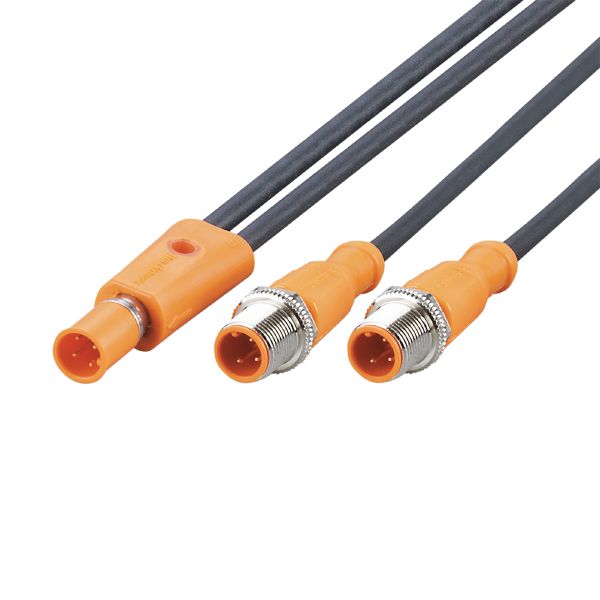

EVC844 Y connection cable YSTGH020MSSXXXXH02STGH040--S
Brand: IFM Electronic
Code: EVC844
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 24 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
|
Mechanical data
| Weight [g] | 84.7 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Moulded-body material | TPU / TPU | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Tightening torque [Nm] | 0.6...1.5 | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug C
| Connector: M12, straight; coding: A; Moulded body: TPU, orange; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC844-00 — 11.07.2023 —
