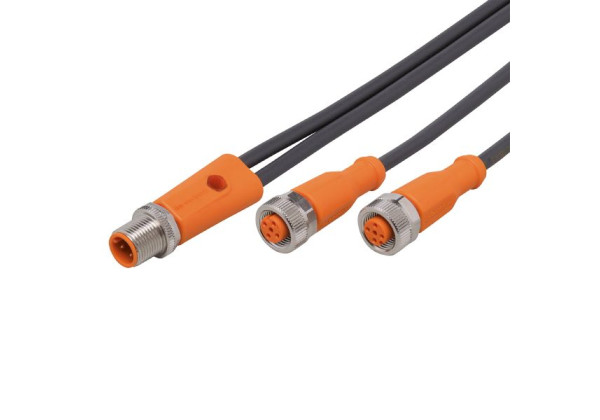

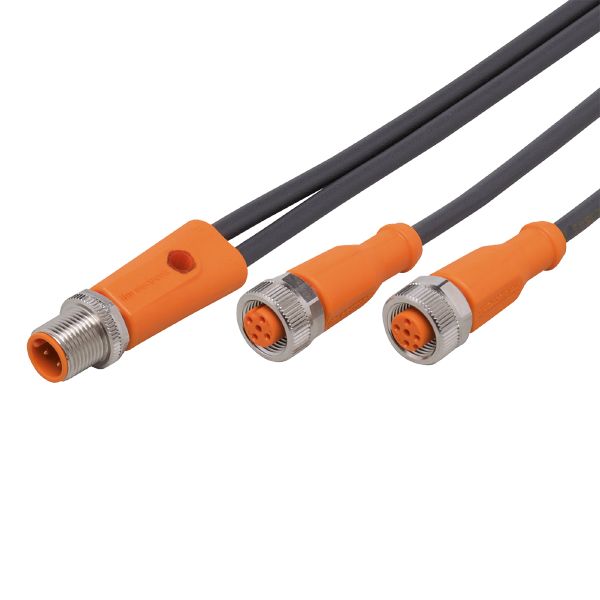

EVC847 Y connection cable for trigger YDOGHDB0MSS00,4HDBSTGH050MSS
Brand: IFM Electronic
Code: EVC847
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Ambient temperature (moving) [°C] | -25...90 | |
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 74.6 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Moulded-body material | TPU | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Sealing material | Viton | ||||||||
| Number of ports splitter box | 2 | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Notes | Please see the technical note under "Downloads" |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug C
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC847-01 — 13.04.2023 —
