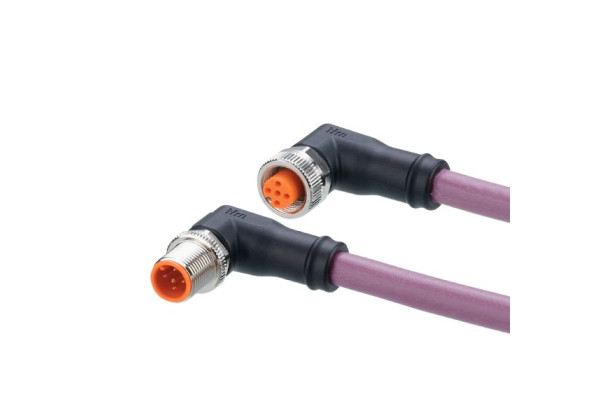

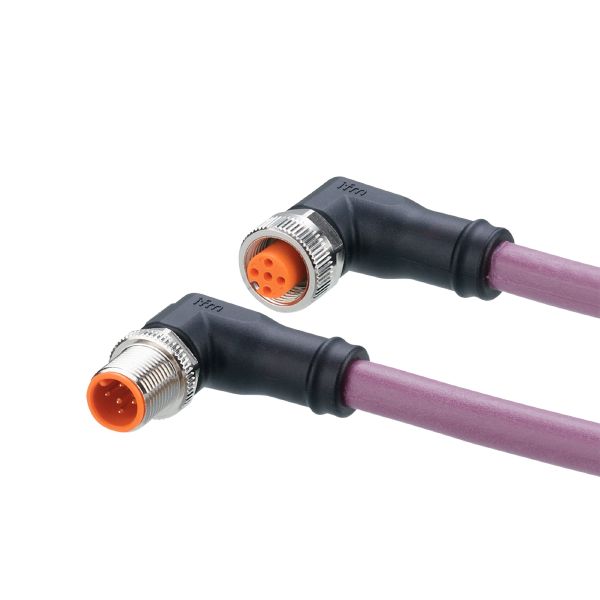

EVC956 Connection cable VDOAH050MSD0010C05STAH050MSS

Code: EVC956

Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Large cable cross-section for reducing the voltage drop
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Application

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Application	CAN bus

Electrical data

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]

-25...80

Storage temperature [°C]

-25...55

Storage humidity [%]

10...100

Other climatic conditions for storage according to stated class

1K22/ DIN 60721-3-1

Protection

IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

990.25

Materials

housing: PUR black; Sealing: FKM

Moulded-body material

TPU

Material nut

brass, nickel-plated

Sealing material

FKM

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

Connection	Cable: 10 m, PUR, Halogen-free, lilac, Ø 8.4 mm, shielded; RD / BK: 2 x 0.75 mm² (42 x Ø 0.15 mm ) + WH / BU: 2 x 0.5 mm² (19 x Ø 0.19 mm ) + screen: 1 x 0.75 mm² (42 x Ø 0.15 mm )

Electrical connection - socket

	Connector: 1 x M12, angled; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
