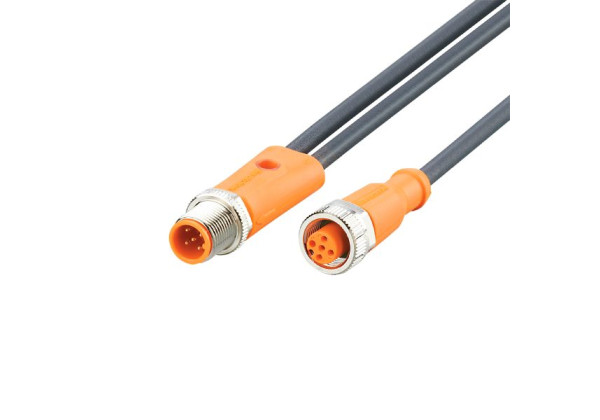

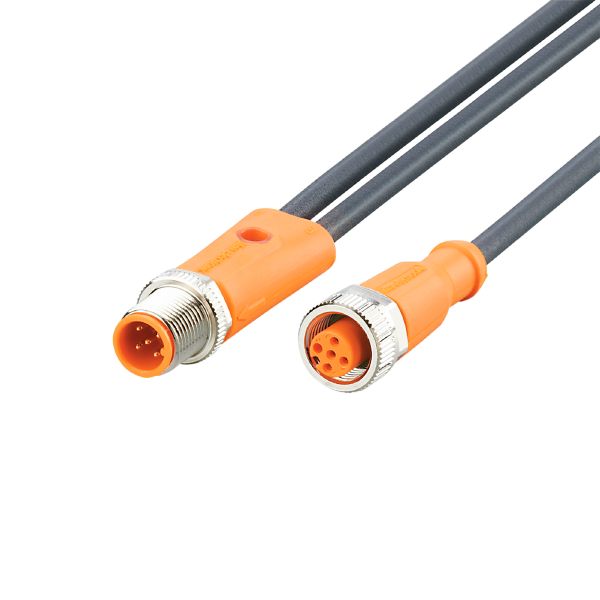

EVCA04 Y connection cable YDOGH040MSS00,3H04STGH050MSS

Code: EVCA04

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	24 DC
Protection class	II
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]

-25...90

Ambient temperature (moving) [°C]

-25...90

Storage temperature [°C]

-25...55

Storage humidity [%]

10...100

Other climatic conditions for storage according to stated class

1K22/ DIN 60721-3-1

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

66.1

Moulded-body material

TPU

Material nut

brass, nickel-plated

Sealing material

FKM

Number of ports splitter box

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

Notes	Please see the technical note under "Downloads"
Pack quantity	1 pcs.

Electrical connection - plug C

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

Connection	Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket A

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - socket B

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
