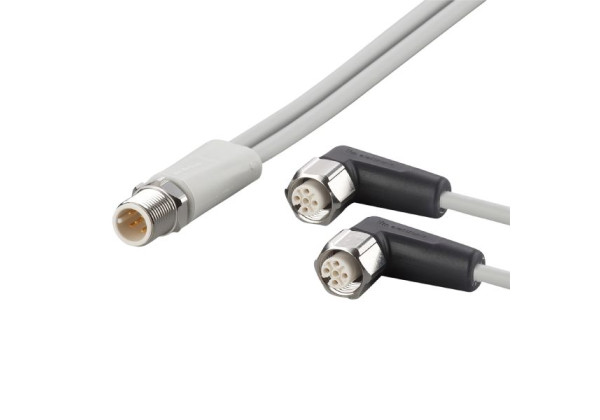

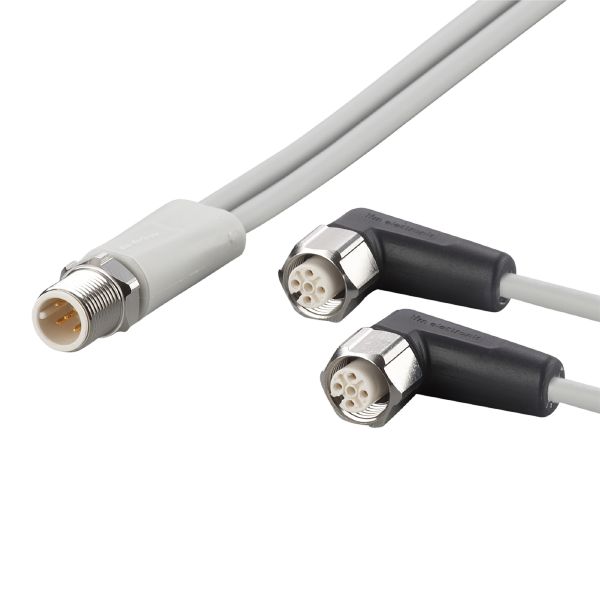

EVF336 - YDOAH032VAS0002P03STGH040VAS

Code: EVF336

For use in hygienic and wet areas in the food industry
Permanent, reliable sealing even when mounted without tools
Cable sheath made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mechanism
Large operating temperature range and high protection rating

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application	hygienic and wet areas in the food industry
Free from silicone	yes

Electrical data

Operating voltage [V]	10...36 DC
Protection class	II
Max. current load total [A]	4

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-25...100
Ambient temperature (moving) [°C]	5...100
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

UL approval

65 °C

Mechanical data

Weight [g]

151

Moulded-body material

Material nut

stainless steel (1.4404 / 316L)

Sealing material

EPDM

Number of ports splitter box

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 1 Mio.
torsional strain	± 180 °/m

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PP, grey; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVF336-00 — 05.11.2020 —
