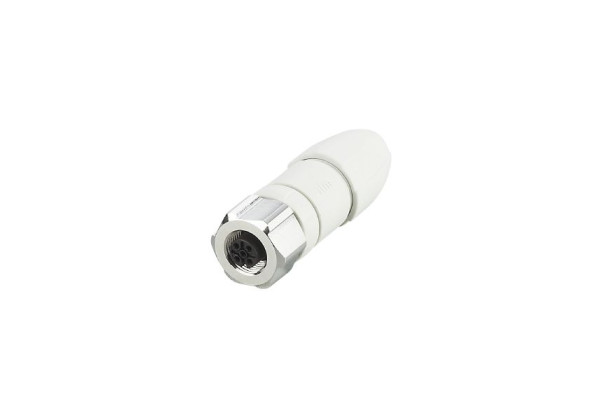

EVF565 - SDOGH040VASFKPG
Brand: IFM Electronic
Code: EVF565
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 250 AC / < 300 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -25...100 | |
|---|---|---|
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 40.1 |
|---|---|
| Moulded-body material | PA 6.6 |
| Material nut | stainless steel (1.4404 / 316L) |
| Sealing material | EPDM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17 |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart! |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVF565-00 — 31.05.2023 —
