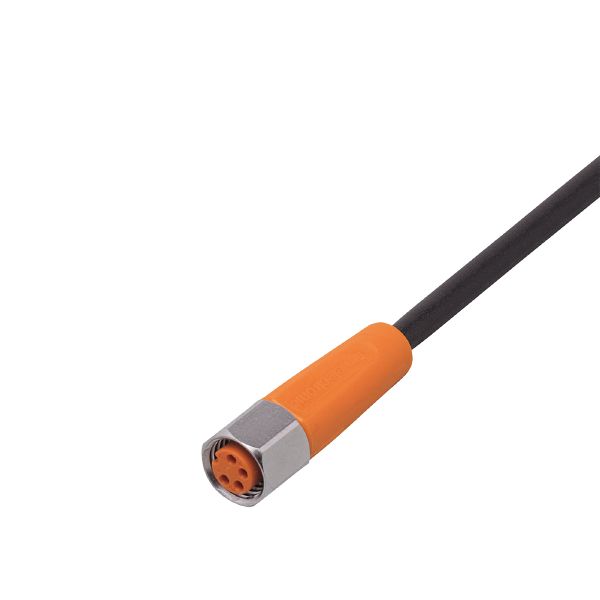

EVM028 - ecomat400-ADOGF040VAS0002H04

Code: EVM028

For applications in mobile machines and in particularly harsh industrial environments
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Resisting fast temperature fluctuations and salt spray
Resistant to oils and coolants

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]

-25...90

Note on ambient temperature

cULus:...80 °C

Ambient temperature (moving) [°C]

-25...90

Note on ambient temperature (moving)

cULus:...80 °C

Protection

IP 65; IP 67; IP 68; IP 69K

Tests / approvals

Vibration resistance

EN 60068-2-6 Fc	20 g (10...3000 Hz) / -20 °C / 50 °C
	50 sweep cycles, 1 octave per minute, in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half sine; 6 shocks each in every direction along the three coordinate axes / -40 °C / 85 °C

Continuous shock resistance

EN 60068-2-29 Eb

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20 °C / 50 °C

Fast temperature change

EN 60068-2-14 Na

TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles

Salt spray test

EN 60068-2-52 Kb

severity level 5 (4 test cycles)

Mechanical data

Weight [g]

55.6

Dimensions [mm]

10 x 10 x 31

Materials

housing: TPU orange; Sealing: FKM

Material nut

stainless steel (1.4404 / 316L)

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, black, Ø 3.7 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M8, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
