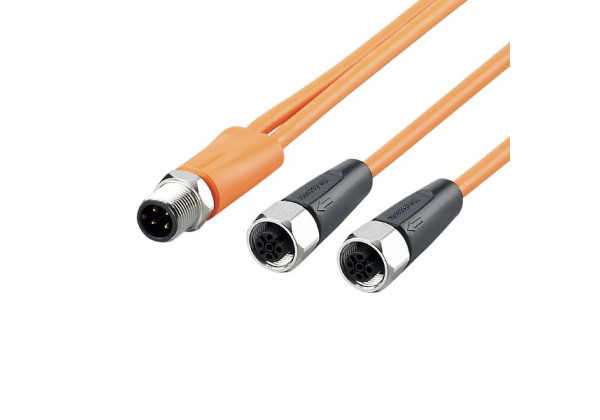

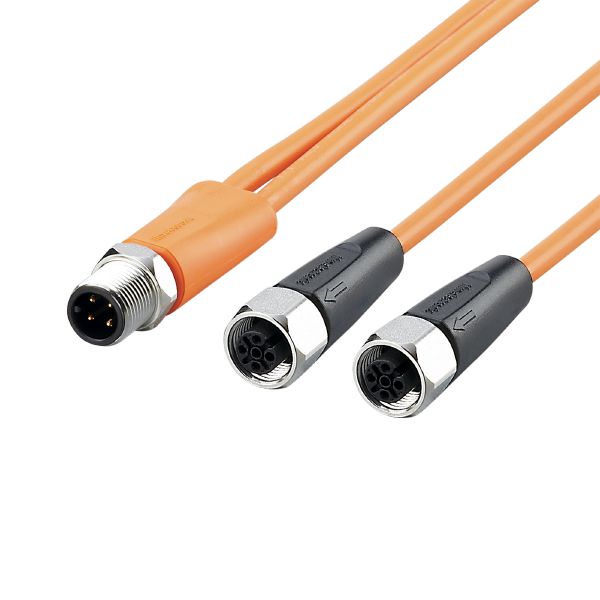

EVT473 - YDOGH034VAS00,3E03STGH040VAS

Code: EVT473

For use in hygienic and wet areas in the food industry
Permanent, reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
LEDs clearly visible even under bright lighting

Application

Special feature	Free from silicone; Gold-plated contacts; Drag chain suitability
Application	hygienic and wet areas in the food industry
Free from silicone	yes

Electrical data

Operating voltage [V]	10...36 DC
Protection class	II
Max. current load total [A]	4

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]

-25...100

Note on ambient temperature

cULus:...50 °C

Ambient temperature (moving) [°C]

5...100

Note on ambient temperature (moving)

cULus:...50 °C

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

67.2

Moulded-body material

PVC

Material nut

stainless steel (1.4404 / 316L)

Sealing material

EPDM

Number of ports splitter box

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 1 Mio.
torsional strain	± 180 °/m

Displays / operating elements

Display

switching status	2 x LED, yellow
operation	2 x LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.3 m, PVC, orange, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PVC, orange; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
