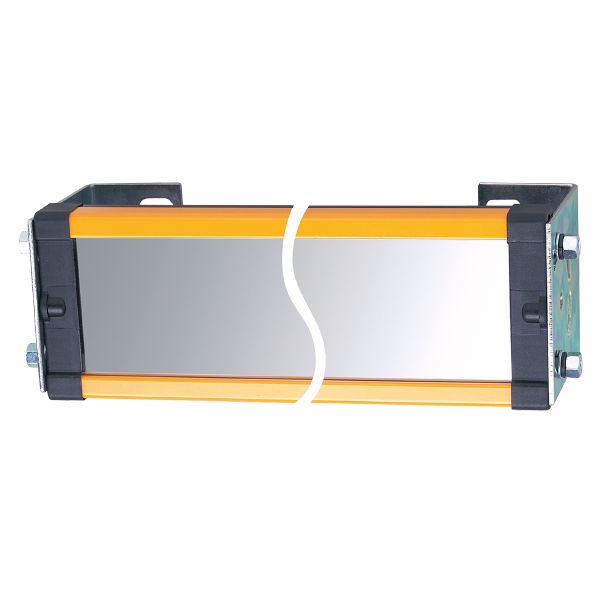

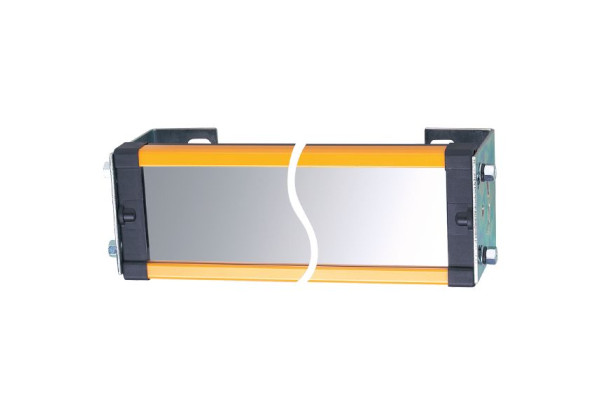

EY1005 Corner mirror for safety light grids DEFLECTION MIRROR 885 LENGTH
Brand: IFM Electronic
Code: EY1005
- Can be combined with safety light grids and safety light curtains
- Reliable deflection of the light beam
- Protection of hazardous areas from several sides with reduced wiring
- Robust design for use in harsh industrial environments
Operating conditions
| Ambient temperature [°C] | -10...55 |
|---|
Mechanical data
| Weight [g] | 4685 |
|---|---|
| Dimensions [mm] | 927 x 110 x 36 |
| Materials | aluminium epoxy-powder coated; plastics; Accessories: steel galvanised |
| Length [mm] | 885 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EY1005-00 — 27.08.2021 —
