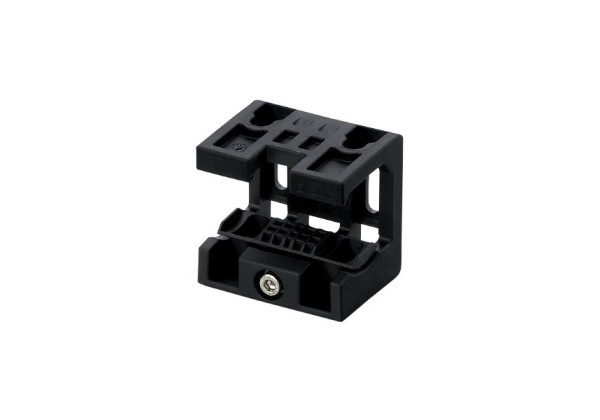

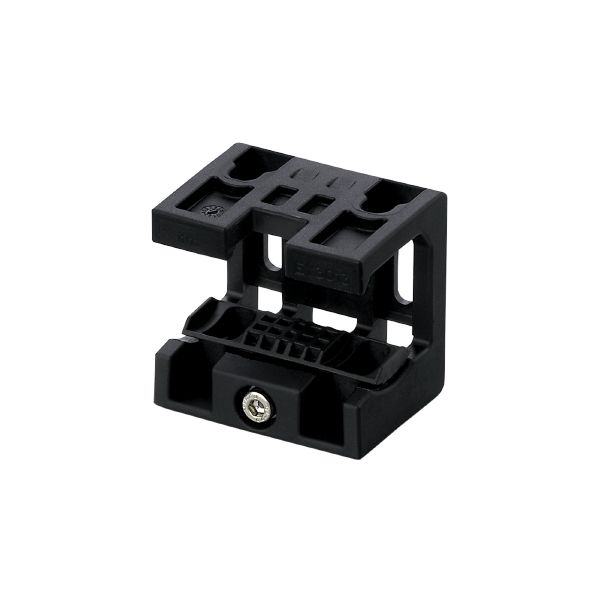

EY3013 - CLAMPING BRACKET/W LOGO
Brand: IFM Electronic
Code: EY3013
- For the reliable installation of safety light grids and safety light curtains
- Easy and fast installation and adjustment
- Robust design for use in harsh industrial environments
Mechanical data
| Weight [g] | 286 |
|---|---|
| Dimensions [mm] | 55 x 57.9 x 43.5 |
| Materials | PA 6.6 glass fibre reinforced |
| Tightening torque [Nm] | 2.5 |
| Alignment range | fine adjustment in 1 axis ± 6° |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 4 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EY3013-00 — 21.06.2016 —
