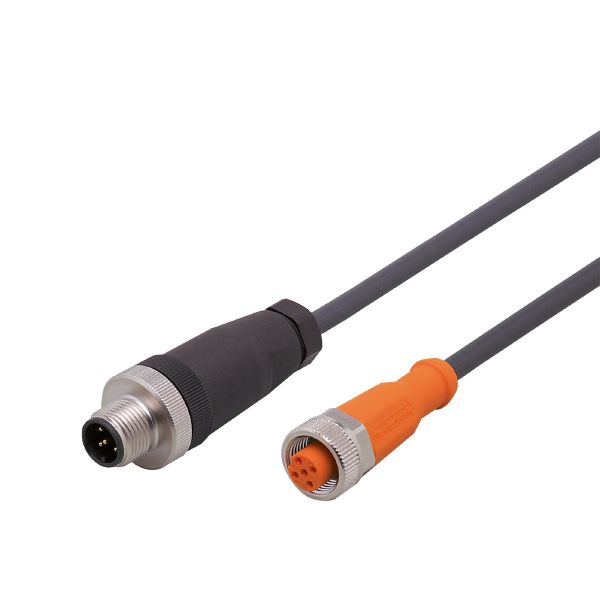

EY3092 Connection cable for the connection of safety light curtains ADAPTER CABLE TRANSM.LOW RANG

Code: EY3092

For the connection of safety light grids and safety light curtains
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Design	For the connection of safety light curtains / safety light grids with OSSD, for transmitters
Application	configured for "short range"
Free from silicone	yes

Electrical data

Operating voltage [V]	< 36 DC
Protection class	II
Max. current load total [A]	4; (...40 °C)

Operating conditions

Protection	IP 67

Mechanical data

Weight [g]	44.8
Materials	TPU orange; PA
Moulded-body material	TPU / PA
Material nut	brass, nickel-plated

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.1 m, PUR, Halogen-free, black, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU / PA, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...0.7 Nm

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU / PA, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
