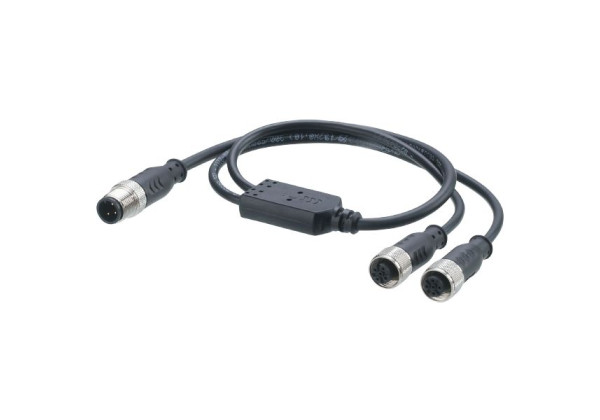

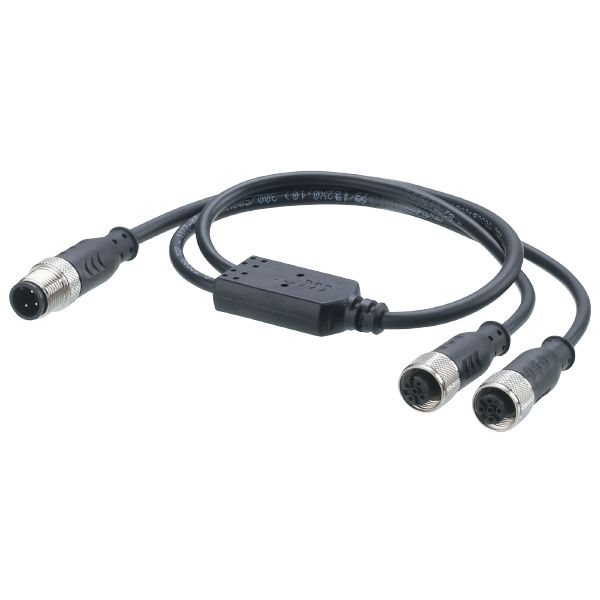

EY5053 Y connection cable Y SPLITTER CABLE HIGH RANGE
Brand: IFM Electronic
Code: EY5053
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 24 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 54.1 | ||||
|---|---|---|---|---|---|
| Moulded-body material | TPU | ||||
| Material nut | brass, nickel-plated | ||||
| Sealing material | FKM | ||||
| Drag chain suitability | yes | ||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug C
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5...0.8 Nm |
Electrical connection - Cable
| Connection | Cable: 0.45 m, PVC, Halogen-free, black, Ø 4.2 mm; 3 x 0.25 mm² |
|---|
Electrical connection - socket A
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.5...0.8 Nm |
Electrical connection - socket B
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.5...0.8 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EY5053-00 — 16.03.2021 —
