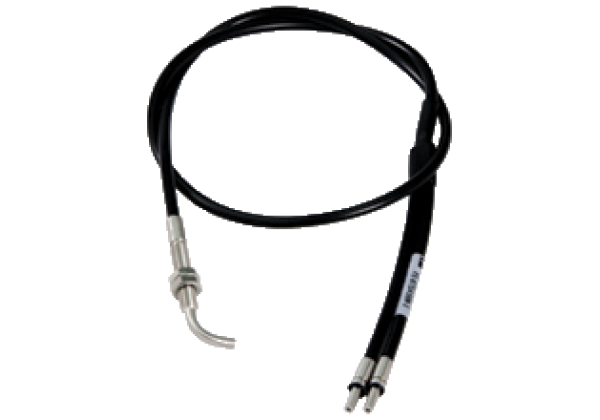

Glass fiber optic FE-BTSAS6M-3
Brand: Pepperl+Fuchs
Code: FE-BTSAS6M-3
Glass fiber optic - diffuse, Sensing head: Cylindrical/smooth barrel with right angle optics, Sheathing: PVC, Sensor series: MP, MHP, Series 61, Fiber optic length: 3 ft.
Datasheet excerpt: Technical data of FE-BTSAS6M-3
| Product Description |
|---|
| Glass fiber optic - diffuse |
| General specifications | ||
|---|---|---|
| Sensor range | MHP-FR: 36 mm MHP-F: 80 mm RL(K)61-LL: 155 mm MPG6HD: 170 mm | |
| Fiber optic length | 3 ft (.914 m) | |
| End piece | Optical axis: Right angle Type: Cylindrical / smooth barrel Thread size: 5/16 - 24 UNF | |
| Bending radius | min. 19 mm | |
| Fiber bundle diameter | 3.2 mm | |
| Ambient conditions | ||
| Ambient temperature | -40... 120 °C (-40... 248 °F) | |
| Mechanical specifications | ||
| Material | ||
| Optical face | glass | |
| Sheathing | PVC | |
| Core | glass | |
| End piece | Stainless steel 1.4305 / AISI 303, brass | |
| Adapter | Stainless steel, 4.7 mm diameter | |
| General information | ||
| Scope of delivery | 2 hex nuts included | |
| Fiber optic amplifiers | ||
| Device series | MP, MHP, Series 61 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
