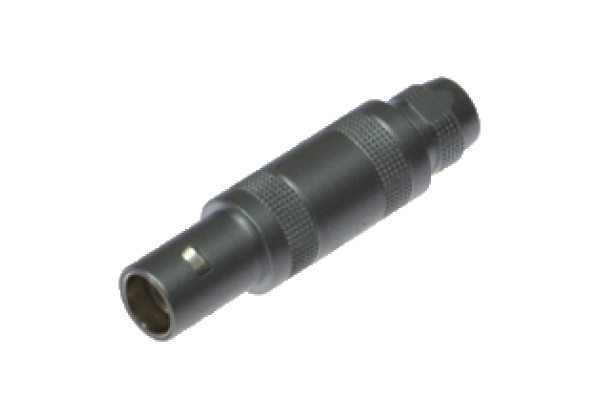

Female cordset, field attachable FFA 0S 302 CLAL 42
Brand: Pepperl+Fuchs
Code: FFA 0S 302 CLAL 42
Female cordset, field attachable
Datasheet excerpt: Technical data of FFA 0S 302 CLAL 42
| Product Description |
|---|
| Female cordset, field attachable |
| General specifications | ||
|---|---|---|
| Number of pins | 2 | |
| Construction type | Socket, straight | |
| Electrical specifications | ||
| Test voltage | 1500 V eff | |
| Operating current | max. 10 A | |
| Ambient conditions | ||
| Ambient temperature | -55... 250 °C (-67... 482 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP50 | |
| Material | ||
| Contact surface | brass, nickel-plated | |
| Body | chromium plated brass | |
| Cable | ||
| Sheath diameter | 3.3... 4.1 mm | |
| Core diameter | max. 0.34 mm / 22 AWG | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
