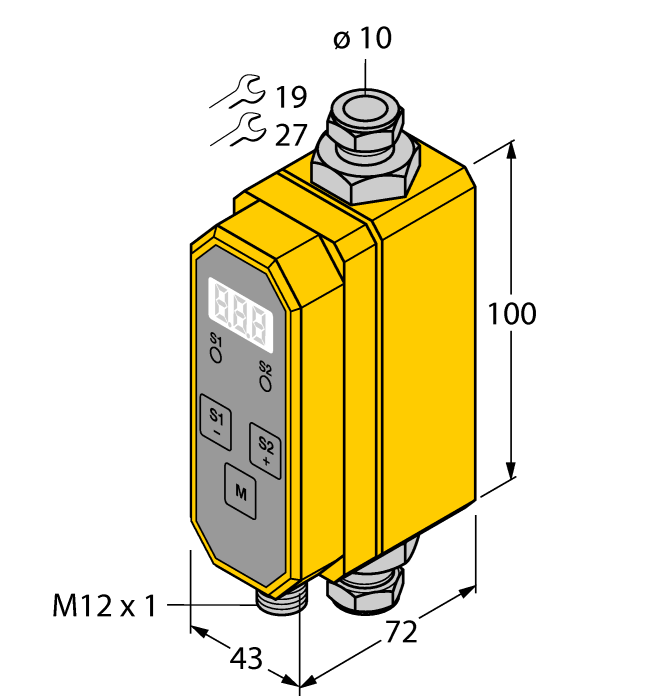

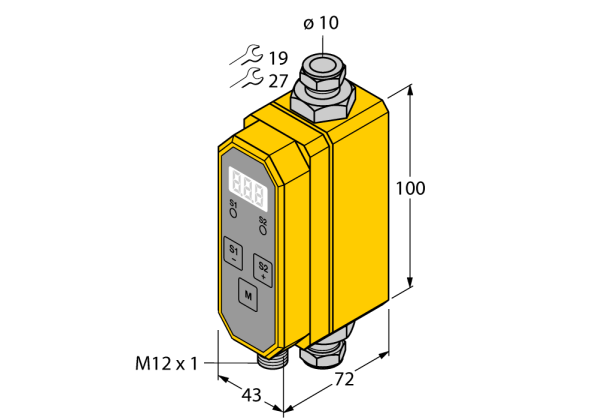

Flow Rate Monitoring FTCI-10D10A4P-2UP8X-H1141
Brand: TURCK
Code: 6870041
- Protection class
- IP65
- Switching element function
- NO/NC programmable
- Output function
- 2 × PNP
- Design
- Inline
- Process connection
- Compression fittings for pipes Ø 10 × 1 (EN10305-1)
- Medium
- liquids
- Detection type
- Calorimetric
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Plastic
- Housing quality
- PBT
- Media temperature min. (°C)
- -10
- Media temperature max. (°C)
- 90
- Ambient temperature min. (°C)
- 0
- Ambient temperature max. (°C)
- 60
- Mounting conditions
- Inline sensor
- Operating voltage
- DC
