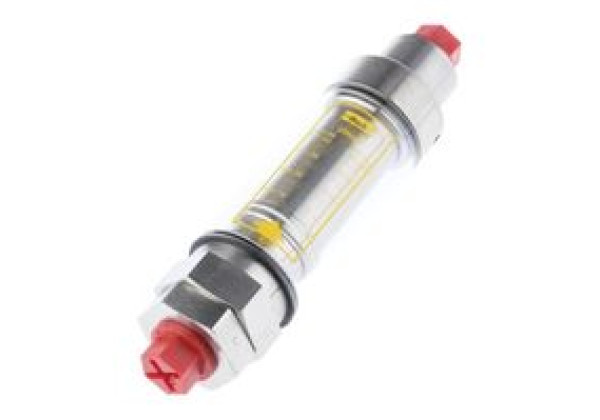

FM.26222229 Parker Variable Area Flow Meter, 5 L/min → 46 L/min, Flowline Series
Brand: Parker
Code: FM.26222229
Media Monitored = Liquid Device Type = Variable Area Minimum Flow Rate = 5 L/min Maximum Flow Rate = 46 L/min Pipe Diameter Range = 1/2 in Connection Type = 1/2 BSP Material = Brass Maximum Operating Temperature = +90°C Series = Flowline Industrial Flow Indicators - Flowline. High-pressure, variable flow indicators with a graduated flow scale on the outer viewing sleeve and an indicator ring which is magnetically coupled to an internal piston. All utilise the technique of differential pressure across a piston which, as the flow increases, moves the piston against a calibrated spring. Can be installed on any plane. Features and Benefits. Pressures up to 350 bar. Flows up to 360 L/min. Accuracy ±5% FSD. Repeatability ±1% FSD. Relatively insensitive to viscosity changes. Direct reading. Oil or water calibrated |
