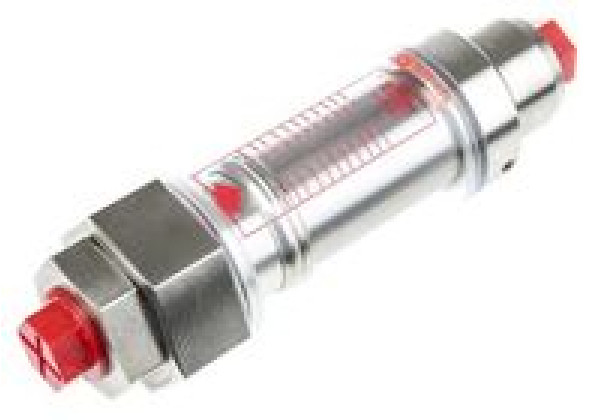

FM.26322119 Parker UCC Hydraulic Flow Meter FM.26 322 119, BSP 3/4, 5L/min, 55L/min
Brand: Parker
Code: FM.26322119
Scale Units = LPM Connection Thread = BSP 3/4 Flow Accuracy = ±5FSD Maximum Operating Pressure = 350 bar Body Material = Brass Maximum Viscosity = 200cSt Connection Thread Size = 3/4 in Connection Thread Standard = BSP Minimum Operating Temperature = -20°C Maximum Operating Temperature = +90°C Minimum Flow = 5L/min Maximum Flow = 55L/min Minimum Viscosity = 10cSt Oil Calibrated Variable Area Meter. Three flow options offer flow measurement in any plane, including the horizontal. Flow through annular orifice, formed by piston bore and a tapered cone, causes a difference in pressure which moves the piston against a calibrated spring. Indicator line viewed against colour-coded scale indelibly printed inside a transparent tube to give direct flow reading. The transparent tube does not cloud or fog up due to all the media being contained inside the metal housing. Features and Benefits. Works in any plane Pressure up to 350 bar Flows up to 360 L/min Accuracy ± 5% FSD Repeatability ± 1% FSD Direct Reading Relatively insensitive to viscosity changes Oil or water calibrated |
