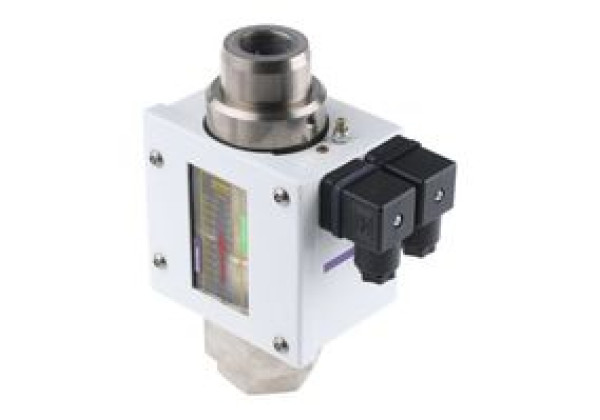

FS.643322229 Parker UCC Boxed Two-Switch Flow Switch, 10 L/min → 110 L/min, Flowline Series
Brand: Parker
Code: FS.643322229
Media Monitored = Liquid Device Type = Boxed Two-Switch Minimum Flow Rate = 10 L/min Maximum Flow Rate = 110 L/min Supply Voltage = 250 V ac Pipe Diameter Range = 3/4 in Maximum Pressure = 350bar Material = Stainless Steel Minimum Operating Temperature = -20°C Maximum Operating Temperature = +90°C Series = Flowline 2 x DIN standard sockets complete with plugs. Industrial Flow Indicator – Boxed version. High pressure, variable flow indicator with a graduated flow scale on the outer viewing sleeve and a indicator ring which is magnetically coupled to an internal piston. Utilises the technique of differential pressure across a piston which, as the flow increases, moves the piston against a calibrated spring. Can be installed in any plane without compromising accuracy and is supplied with a manufacturers instruction leaflet. Contains 2 independently adjustable microswitches housed in a metal enclosure with indicating flags showing the switch settings through the viewing window. |
